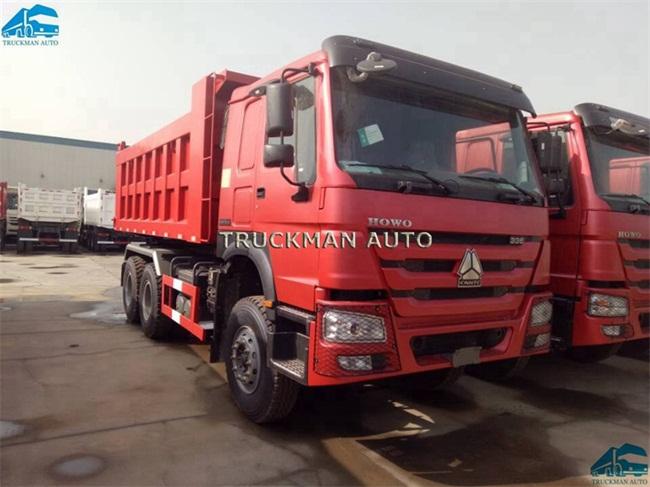

Howo Heavy Duty Dump Truck 6x4 20-30 Tons 18cbm Bucket Air Assistance
New 2020 Howo Heavy duty dump truck 6x4 20-30 Tons 18CBM Bucket
| Engine Details | WD615.47, Euro II emission standard |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance |
| Transmission | DC transmission, model HW19710, synchromesh, 10 forward & 2 reverse |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | Steering with double T-cross section beam |
| Rear Axles | Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels Ratio: 5.73 |
| Chassis | U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe |
| Steering | Z F Brand |
| Cargobox | 5400*2300*1500mm bottom 8mm side 6 ventral lifting |
| Cabin | HW76,One Bed AC |
Engine Details
Make: STEYR
Diesel: 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro II emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 371 hp (273 Kw) at 2200 rpm
Maximum torque: 1470 Nm at 1300-1600 rpm
Number of cylinder: 6
Displacement: 9.726 I
Bore: 126 mm
Stroke: 130 mm
Compression ratio: 38.1 hp/I
Specific fuel consumption: 198 g/kWh
Engine oil filling quantity: 19 I
Cooling system filling quantity (long-term filling): 40 I
Thermostat with 71℃ opening begin
Single cylinder air compressor
Rigid fan
Clutch:Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance
Transmission:DC transmission, model HW19710, synchromesh, 10 forward & 2 reverse
Propeller Shaft:Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
Steering with double T-cross section beam
Rear Axles
Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels
Ratio: 5.73
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs with bogie springs
Fuel tank: 200 I capacity with locking fuel cap, fitted to the off side of the chassis
Spare wheel
Dimensions in mm
Wheel base 3850 + 1350
Front wheel track 1934
Rear wheel track 1816
Front overhang 1500
Rear overhang 1554
Approach angle (°) 29
Departure angle (°) 45
Overall length 8214
Overall width 2520
Overall height 3350
Cargo body size 5400*2300*1500
