Mini 10G OEO SFP+ to SFP+ Media Converter with 3R Repeater for Long Haul Transmission Up To 80KM and Hot-Plugging Support
Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission
Product Description
Gezhi Photonics 10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.
Features
* Supports connections up to 10Gbit/s data rate
* Functions as a fiber mode converter or fiber repeater for long distance transmission
* For use with SFP+ module and supports hot-plugging
* Transmission distances from 550m to 80km
* Available with internal or external power supply
* Can be installed into a media converter chassis
* 3R Repeater
* Support Jumbo Frame
* Transparent Transport and very low delay
* Support ITUT prescribed DWDM/CWDM wavelength
* Support hot plugging
* Support 2U Rack (16 channel) and standalone use
* Full State Led display
* Easy installation
* Connection between fiber to fiber 10Gbps equipment function as fiber mode converter, or as fiber repeater for long distance transmission

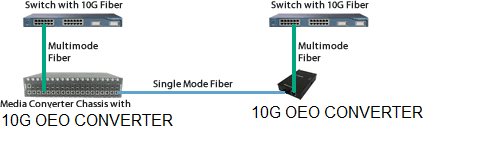

Applications
Product specifications
| Performance Data |
Technical Indexes |
|---|---|
| Equipment function | 3R Repeater |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
| Interface Type | SFP+ to SFP+/XFP to XFP |
| Transmission Distance | SFP+ module: up to 80km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| power requirement |
Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 110~220V OR -48V OR 5V 2A Power consumption: ≤4W |
| Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
| Dimension | 30×100×140mm(external power) |
