Solid Beverage Auger Inclined Screw Conveyor With Hopper Feeder
Hopper Inclined Screw Conveyor/Auger Feeding Machine
product description
Screw feeder has the characteristics of easy to install, operate and maintain. Due to special design, it is suitable for free flow and non-flow character materials, such as milk, solid beverage, sugar, coffee powder, pharmaceutical, pesticide, additives,etc.
Technical parameters :
| Diameter(mm) | conveying angle | Power(kw) | Capacity(t/h) | |
| 108 | 0-60 | 1.5-2.2 | 8 | |
| 159 | 0-60 | 2.2-3 | 16 | |
| 219 | 0-45 | 3-4 | 30 | |
| 273 | 0-45 | 4-5.5 | 40 | |
| 300 | 0-30 | 5.5-7.5 | 45 | |
| 400 | 0-30 | 7.5-11 | 50 | |
| 500 | 0-30 | 7.5-11 | 55 | |
Application:
Loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc.
It is widely used for the loose cement transportation from cement warehouse to mixer or from cement warehouse to mpounding machine in concrete mixing plant.
Working principle
Screw conveyor is relying on a spiral blade shaft in the trough of closed continuous rotation in order to impel the lose of material moving. At this time, the material are like the bolt, in spinning along the axial moving forward gradually, finally discharging mouth off.
Screw conveyor Structure
The structure of the screw conveyor, mainly by the drive device, discharge hole, rotating screw axis, bearings, housing and feeding port, etc. Usually screw conveyor has the bearing on the material movement terminal side, it can withstand the material to spiral axial force of the blade. When the conveyor is longer than the fuselage, it should be added the middle hanging bearing.

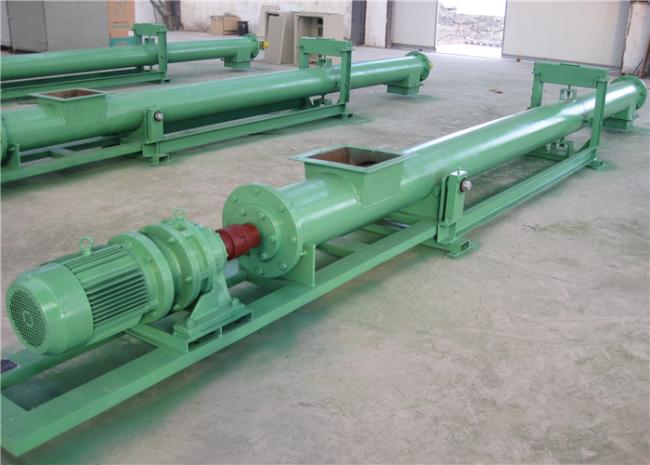

Pictures
Characteristic
- Efficient delivery : small diameter , high rotating speed, large transmission capacity, variable pitch of spiral body, and small resistance of intermediate bearing make loading material smoothly, quickly and evenly.
- Random arrangement : conveyor has good integral rigidity and can transport the products flatly or steeply inclined, it can be connected with its corollary equipments directly , and can be set up and dismantled easily with small floor space.
- Good lubrication : low oil lubricating sliding tile, multilayer labyrinth oil seal design and integral lubricating system composed of of oil pump, distributor and pipeline are convenient and can completely lubricate all the running parts.
- Reliable sealing : the dust cover of reducer is reliable for preventing leakage which can protect reducer and create good working condition. Improved peephole can prevent water seepage and material leakage.
- Diverse connection : feed inlet and outlet can be connected not only with universal ball, bag,flange etc but also butterfly valve and gate valve.
- Innovative design: special reducer designed and produced with introduced technology not only has the advantages of a small size, a big bearing torque.
FAQ
1. Are you a factory?
--- Yes, we are a professional exhaust gas treatment manufacturer for more than 15 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have sot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, solvent composition, working hours,etc for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 5 minutes during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept 100%T/T at present. 50% initial payment,down payment before shipment. Other payment terms can be discussed when order confirmed.
