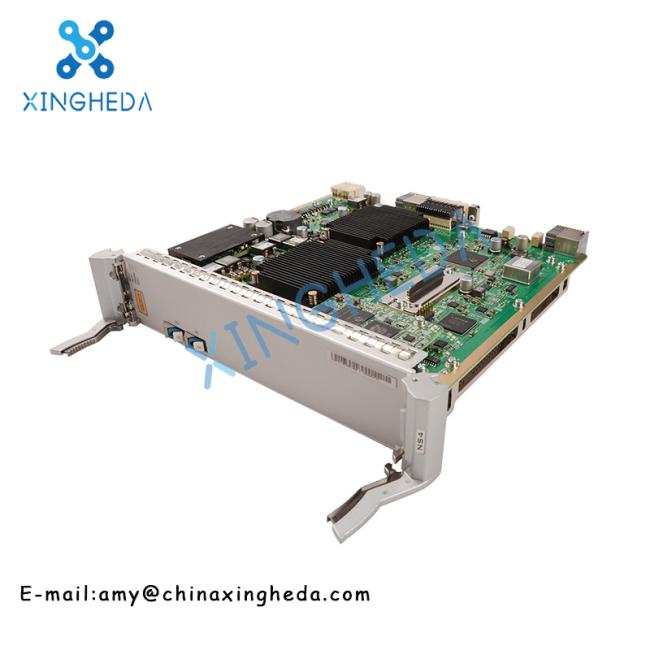

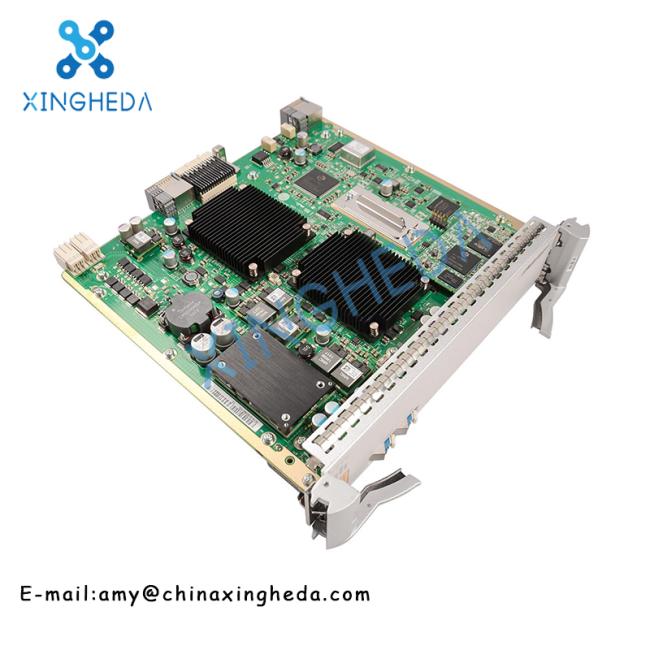

HUAWEI NS4 TN54NS4T01 03030PGT HUAWEI ON8800 100G Line Service Processing Board
HUAWEI NS4 TN54NS4T01 03030PGT HUAWEI ON8800 100G Line Service Processing Board
Product Desription:
100Gbit/s tunable wavelength WDM line service processing board, apply to Huawei OSN8800.
Available functional versions of the NS4 board are TN54, TN56, TN57 and TN58.
In general OSN8800 T64/T32 subrack and OSN 8800 universal platform subrack, TN54NS4T01 can work only in relay mode.
When TN54NS4T01 works in line mode, enhanced OSN 8800 T64 subrack must use TNK2USXH+TNK2UXCT; enhanced OSN 8800 T32 subrack must use the TN52UXCH/TN52UXCM; and OSN 8800 T16 subrack must use TN16UXCM.
TN54NS4 can be substituted by TN56NS4/TN57NS4 on the NMS without any software upgrade.
Boards that use different FEC modes cannot interconnect with each other.
TN54NS4T01 achieves cross-connection at the electrical layer, and to provide OTN interfaces and ESC.
Supports OTU4 interface on the WDM side.
Supports OTN frame format and overhead processing by referring to the ITU-T G.709.
OTU4 layer: supports SM function.
Tune optical signal output on WDM within range of 80 wavelengths in C-band with channel spacing of 50 GHz.
Supported ESC function.
Supports the PRBS function on the WDM side.
Supports HFEC on the WDM side.
The WDM-side signals from an NS4 board can be regenerated by another NS4 or an LTX of the same type.
Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Supports tributary SNCP protection, ODUk SPRing protection and ODUk SNCP.
Supported WDM side and ODU0/ODU1/ODU2/ODU3/ODU4/ODUflex Channel Loopback.
TN54NS4T01 is a 100G OTN line board (40000 ps/nm,LH,HFEC,Coherent Tunable,50GHz,LC), converts 80*ODU0, 80*ODUflex, 40*ODU1, 10*ODU2, 10*ODU2e, 2*ODU3, 1*ODU4 into one OTU4 signal. TN54NS4T01 can apply to Huawei OSN8800. In general OSN 8800 T64/T32 subrack and OSN 8800 universal platform subrack, TN54NS4T01 can work only in relay mode; If you need TN54NS4T01 works in line mode, enhanced OSN 8800 T64 subrack must use TNK2USXH+TNK2UXCT, enhanced OSN 8800 T32 subrack must use the TN52UXCH/TN52UXCM and OSN 8800 T16 subrack must use TN16UXCM.
TN54NS4T01 part number is 03030PGT, some other version like TN56, TN57 and TN58 with different system compatibility and feature supported. TN56NS4/TN57NS4 can substitute for TN54NS4 on the NMS without any software upgrade.
Specification:
| Valid Slot | |
|
OptiX OSN 8800 T64 subrack: IU2-IU8, IU12-IU18, IU20-IU26, IU28-IU34, IU36-IU42, IU46-IU52, IU54-IU60, IU62-IU68. OptiX OSN 8800 T32 subrack: IU2-IU8, IU13-IU19, IU21-IU27, IU30-IU36. OptiX OSN 8800 T16 subrack: IU2-IU8, IU12-IU18. OptiX OSN 8800 universal platform subrack: IU4-IU16. |
|
| Optical Interface Parameter | |
| Parameter | Value |
| Optical Module Type | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN |
| Line code format | ePDM-QPSK(HFEC) |
| Transmitter parameter specifications at point S | |
| Center frequency(THz) | 192.1 to 196.05 |
| Maximum mean launched power(dBm) | 0 |
| Minimum mean launched power(dBm) | -5 |
| Center frequency deviation(GHz) | ±2.5 |
| Maximum -3 dB spectral width(nm) | 0.35 |
| Dispersion tolerance (back-to-back)(ps/nm) | 40000 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1529 to 1561 |
| Receiver sensitivity(dBm) | -16 |
| Minimum receiver overload(dBm) | 0 |
| Maximum reflectance(dB) | -27 |
| Mechanical Specifications | |
| Dimensions(mm) | 50.8(W) x 220(D) x 264.6(H) |
| Weight(kg) | 2.5 |
Product details:
