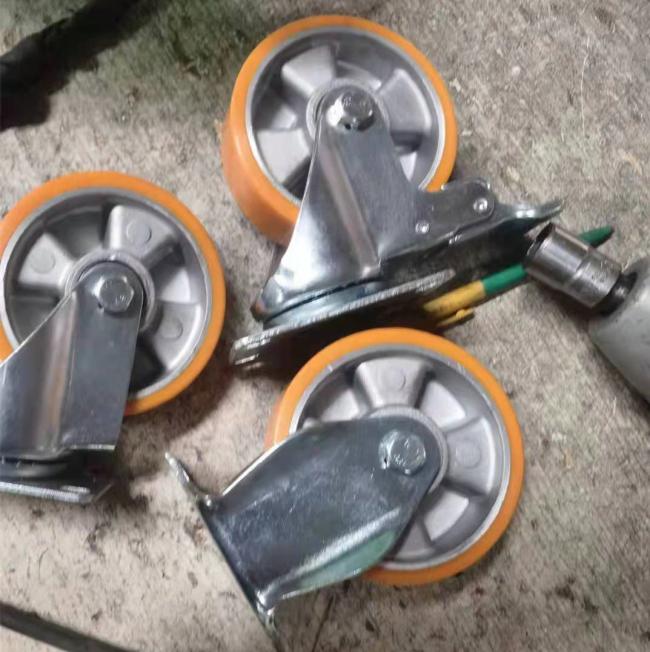

Orange PU Aluminium Castor Wheel 5 Inch

5 inch orange PU aluminium caster

Description:

yellow polyurethane aluminum core wheel supports 100-150kgs/piece,Precision double ball bearings ,smooth rolling on uneven surfaces without leaving traces or damaging the floor. They are ideal for a variety of applications, such as carts, trolley,platform trucks, warehouse carts and  industrial and commercial equipment.

Free samples are available to test quality

Features and advantages

1 good quality PU wheel,low walking noise ,durable and long service life

2 Aluminum core polyurethane tread,  labor-saving and strong load-bearing rvice life

Technical parameters

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-SOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-SOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-SOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-FOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-FOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-FOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-BOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-BOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-BOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3
