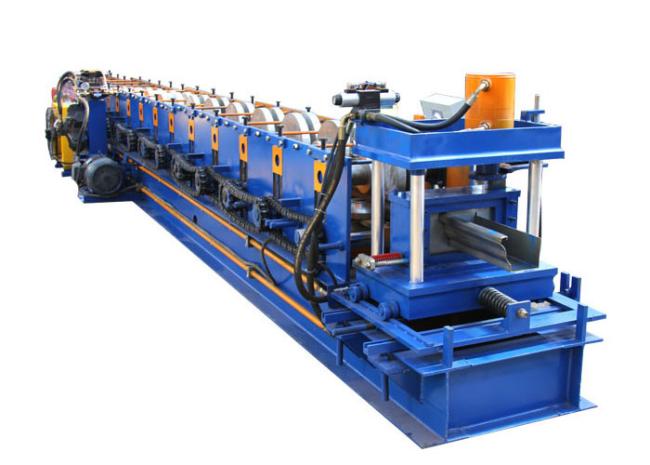

High Precision Gutter Roll Forming Machine , Rain Gutter Machine With Hydraulc Drive Motor
High Precision Gutter Roll Forming Machine , Rain Gutter Machine With Hydraulc Drive Motor
---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.
parameters
|
|
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.7-1.2 mm |
|
|
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 60mm |
| main frame | 300 H steel |
| forming steps | 22 rows |
| productivity | 20-25 m/min 12000 m/day (1 day=8 hours) |
| hydraulic station power | 11 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 10000mm*1000mm*1500mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
FAQ
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
4. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
