70KW Purlin Roll Forming Machine
70KW Purlin Roll Forming Machine

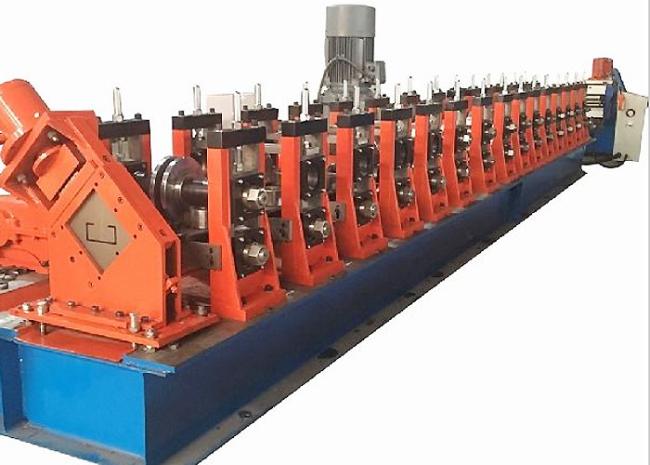

This roll forming machine can produce three kinds of C Z U Purlin profiles, and the rollers can be interchanged each other. It can save production time and cost with automatic control system. Width and thickness can according to customers requirement to be adjustable.
Main Components
| No | Items | Qty |
| 1 | Decoiler | 1 set |
| 2 | Straightening machine | 1 set |
| 3 | Roll Forming Device | 1 set |
| 4 | Punching Device | 1 set |
| 5 | Cutting Device | 1 set |
| 6 | Guarding and Control System | 1 set |

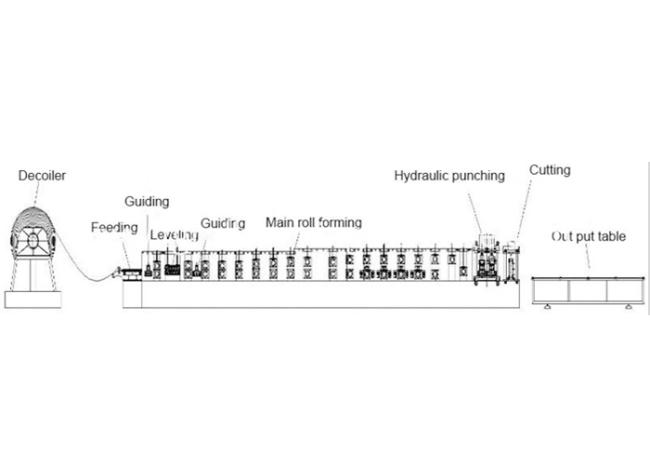

De-coiler → Leveling → Roll Forming→ Cutting→ Unloading
Technical Requirements
| No | Items | Technical Requirements |
| 1 | Equipment Floor Area | 21×3×3(L×W×H)M |
| 2 | Feeding Direction | From Right to Left |
| 3 | Voltage | 380V,50Hz,3 Phase |
| 4 | Air Supply | Flow Rate:0.5m³/min; Pressure: 0-0.7MPa |
| 5 | Hydraulic Fluid | 46# |
| 6 | Gear Oil | 150# |
Main Technical Parameters
| No | Items | Technical Parameters |
| 1 | Material of Strip | Q235 |
| 2 | Width of Strip | ≤500mm |
| 3 | Thickness of Strip | ≤3.2mm |
| 4 | Length | 2~6M |
| 5 | Speed of Rolling | 3m~12m/min |
| 6 | Total Power | Around 70KW |
The supplier ensures the integrity of the supply scope, in order to meet the user's installation and operation requirements as the principle, the supply requirements involved in the technical specifications also serve as a supplement to the scope of this supply. If the shortcomings are found in the installation, commissioning and operation, the supplier will supplement them. The hydraulic oil, gear oil, saw blade, cooling water tank, cable and material used in commissioning shall be provided by Buyer.
FAQ of C Purlin Roll Forming Machine
Q: Is this machine automatic?
A: This is a full-automatic purlin roll forming machine. When put the material on the de-coiler, the machine controlled by PLC will run automatically.
Q: How many profiles can this machine produce?
A: At least three profiles, C Z and U Purlin and Channel. Our roll forming machines all adopts quick change function, you just need change rollers to produce different profiles.
Q: What's the material of your roll forming stands and rollers?
A: About rollers we use Cr12 or Cr12Mov, according to customers requirements. About roll forming stands, we have many types, like wall panel type, archway type and guide pillar type.
Q: What's the driven way of your roll forming machine?
A: Gearbox driven or chain driven, according to customers requirements.
