Power 5.5 KW Seamless Aluminium Gutter Machines , Gutter Rolling Machine Customized Color
Power 5.5 KW Seamless Aluminium Gutter Machines , Gutter Rolling Machine Customized Color
quick details:
Warranty: 1 Year
Type: Gutter Forming Machine
Production Capacity: 0-18 m/min
Power(KW): 5.5
Certification: CE/ISO9001
Tile Type: Metal Steel, Color plate, aluminium plate, galvanized plate
Voltage: 380V, 50HZ,3 phase
Dimension(L*W*H): About 7m*1.8m*1.2m
Weight: About 7-8 Tons
Name: used seamless aluminium rainwater gutter roll forming machine for sale
Raw material: galvanized metal steel,PPGI,PI,CR,steel coil,or equivalent
Thickness(mm): 0.3-0.8
Cutting system: Hydraulic die cutting
Technical Specification
| Item | Parameters | |
| According to buyer's requirements | ||
| Raw material | Type | PPGI, PI, CR , Steel Coil, or equivalent |
| Thickness(mm) | 0.3-0.8 | |
| Width of the feeding material | According to buyer's final confirmed profile drawing | |
| Yield strength(Mpa) | 230-550 | |
| Forming speed(m/min) | 0-18 | |
| Roller material | 45 # sheet with chrome coated | |
| Roller driven type | Chain transmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation type | Touch screen + button | |
| Hydraulic system pressure( MPa ) | 12 | |
| Hydraulic motor power ( KW ) | 5.5 | |
| Main motor power(KW) | 2 * 5.5 | |
| Shaft Material and DIA | 65mm, material is 45 # forge steel | |
| Electric Source | 380V, 50HZ,3 phase According to customer’s require |
|
| Roller stations | 16 | |
| Dimension(L*W*H) | Forming Section about 7m*1.8m*1.2m |
|

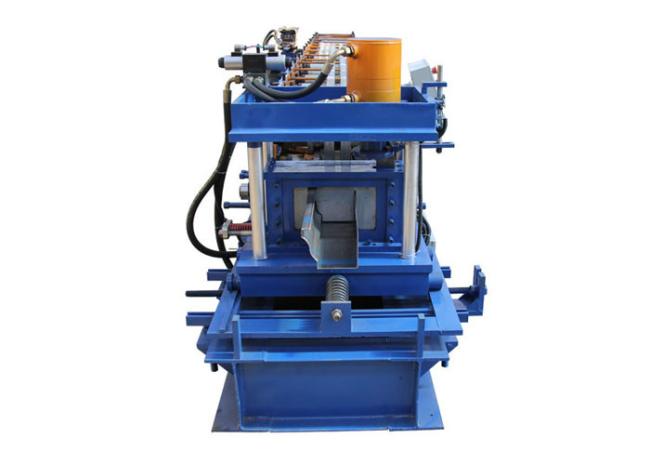

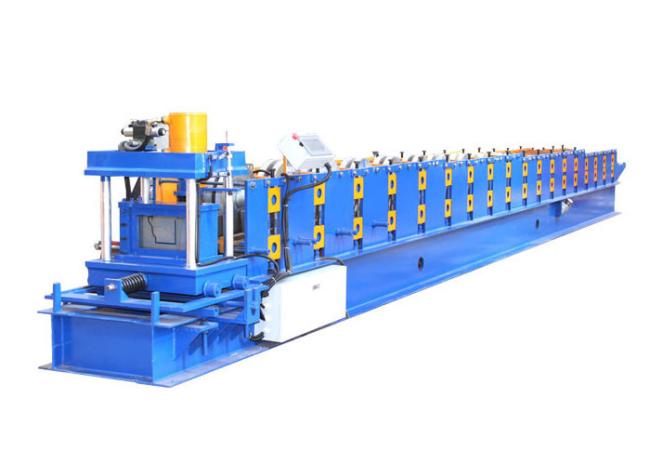

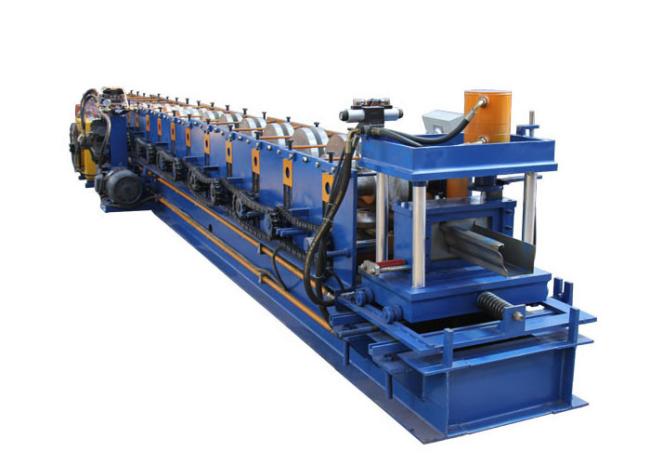

Machine pictures:
