Shaft Diameter 70mm Standing Seam Roll Former
Shaft Diameter 70mm Standing Seam Roll Former
Decoiler-------Feeding-------Roll forming-------Cutting------Finished product
Technical parameters:
| 1. | Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate |
| 2. | Coil width | 1000mm |
| 3. | Thickness | 0.3-0.8mm |
| 4 | Efficiency width | 820mm |
| 1. | Color | Blue body, Red and yellow secondary | According to customer requirements |
| 2. | Appearance size (About) | 9800mm*1500mm*1510mm | Excluding the console |
| 3. | Rows of rollers | 20 rows | |
| 4. | Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| 5. | Diameter of shaft | ￠70mm | |
| 6. | Service life | 10 years | |
| 7. | Total power | 7.5KW |
| 1. | Productivity | 20-25m/min |
1 day=8 hours 12,000m/day |
| 2. | Cut Mode | Hydraulic forming after cutting off | |
| 3. | Cutter material | Cr12 Heat Treatment | Thick, high wear-resisting knife plate |
| 4. |
Electronic control system |
PLC, Touch Screen, Encoding counter |

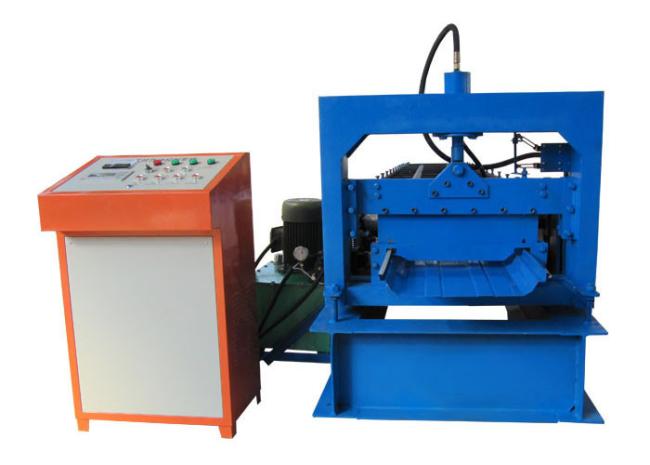

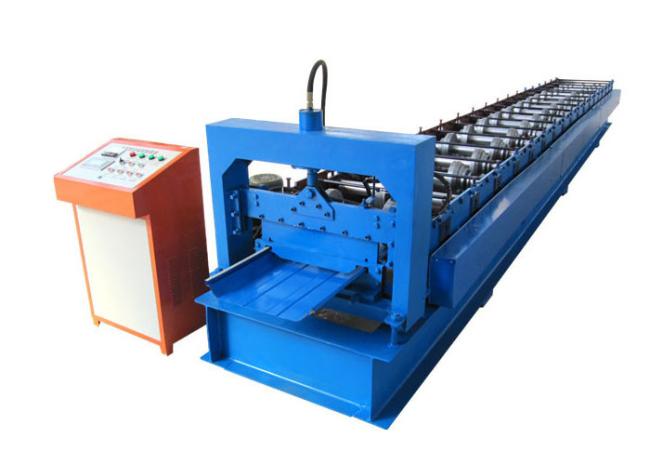

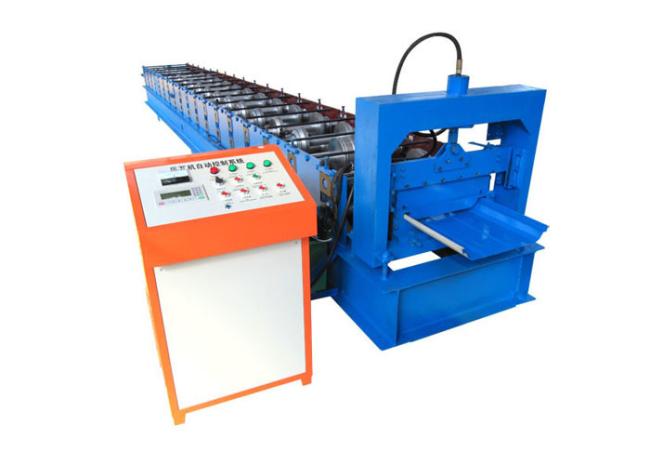

Machine picture
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Certainly if you need other special product, we will do our best to help you, so we can build a long-term business relationship.
Q: Can I order the product with special size?
A: Of course you can, also we will produce the products according to your detail requests.
