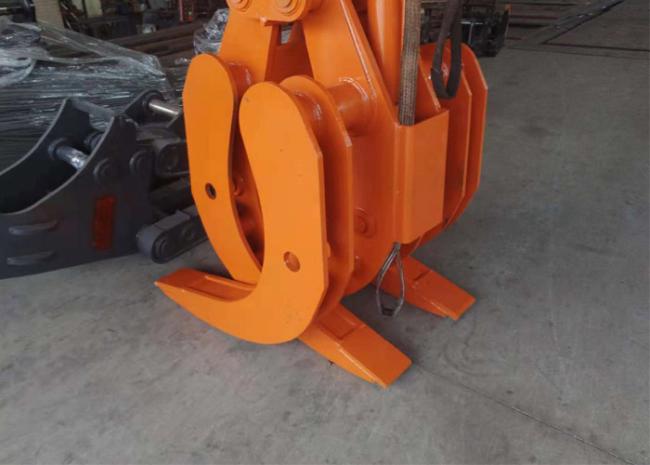

360 Degree Excavator Rotating Grapple Q345B Hydraulic Log Grab
360 Degree Excavator Rotating Grapple Q345B Hydraulic Log Grab
Popular Excavator Rotating Grapple 360 Degree Rotating Design Hydraulic Log Grab
Products Description:
Hydraulic rotate grab is a popular excavator attachments,it have lots of functions,grabbing,loading,unloading,etc.It also can handling lots of materials,such as log,timber,metel scrap,stone,etc.
Features:
1. The finger tips Hardox450 Material,very wearable.
2. 360 degree rotating design,convenient for operating.
3. Rotating speed is 10R/Min,very high rotating speed,high efficent

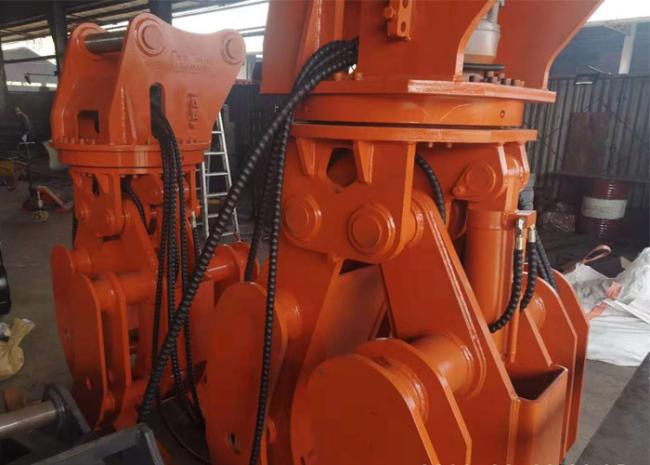

4. Our grab,Cylinder's pistons are well protected by steel shroud preventing them from being damaged.
5. Oil hose are covered by plastic cover for protection .
Specification Excavaotr Hydraulic Rotating Log grapple:
| Max open | 2800 mm |
| Self weight | 2280 kg |
| Close height | 2230 mm |
| Grabbing Capacity | 4 ton |
| Flow requirements for grabbing | 90~260L/min |
| Flow requirements for rotating | 16~25L/min |
| Rotating RPM | 10r/min |
| Material | Q345B+Hardox 450 |
| Warranty | 6 months |

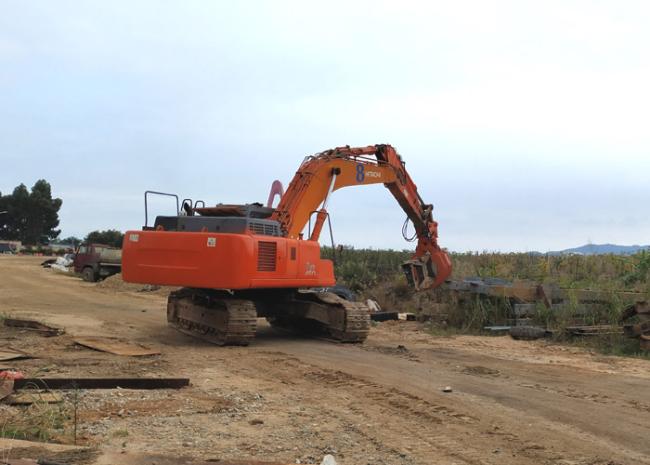

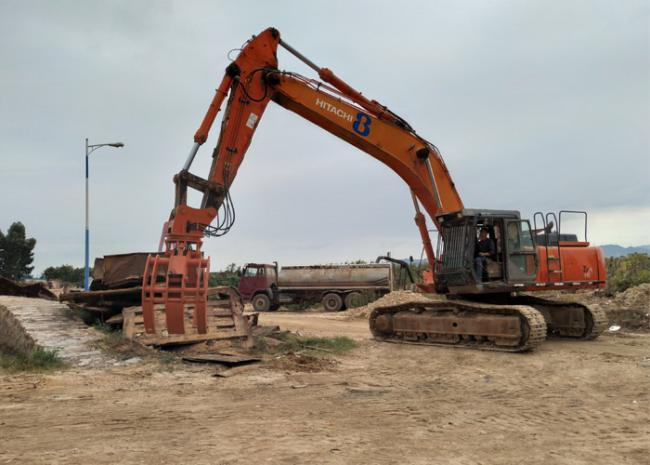

Because this Rotating Grapple's fuction is fr Log loading,unloading.
Log's density is very low,so customer asked bigger max open for grabbing more Logs.
We customize this grapple as customer requirements,The max open of this grapple is 2800mm.
Specification of our series rotate hydraulic grab:
| Model | HK-ZM30 | HK-ZM60 | HK-ZM120 | HK-ZM200 | HK-ZM300 |
| Excavator tonnage(T) | 3~5 | 6~8 | 9~15 | 16~25 | 27~35 |
| Max open(mm) | 800 | 1100 | 1600 | 2200 | 2600 |
| Self weight(Kg) | 240 | 410 | 810 | 1280 | 1800 |
| Closed height(mm) | 980 | 1250 | 1590 | 1890 | 2200 |
| Flow for grabbing(L/min) | 40~80 | 50~100 | 60~120 | 80~200 | 100~260 |
| Flow for Rotating(L/min) | 16~25 | 16~25 | 16~25 | 16~25 | 16~25 |
