Mining Machine Oxidation Pellet Metallurgy Rotary Kiln 5.0×33m
Mining Machine Φ5.0×33m Oxidation Pellet Rotary Kiln Metallurgy Machine
1. Introduction of Oxidation Pellet Rotary Kiln Metallurgy Machine
Oxidation pellet rotary kiln is the main production equipment for calcination of pellets in the pelletizing plant. The accuracy of temperature detection at each point in the rotary kiln plays a decisive role in the quality, output, energy consumption, cost and safe operation of the equipment. The rotation of rotary kiln brings many inconvenience to accurately measure the temperature inside rotary kiln. Therefore, choosing accurate, economical and practical temperature measuring system of rotary kiln is an important means to ensure the normal production of rotary kiln.
In 2003, a Φ5×33m oxidized pellet kiln was manufactured to fill the gap in China. In 2005, "world kiln king" Φ 6.58×47.2m pellet kiln was manufactured.
2. Oxidation pellet rotary kiln product parameters of Metallurgy Machine
| No. | Model | Figure number | SPEC | Drive | Support |
Thrust Roller form |
Tyre (max) Φ×b(m)(t) |
big gear ring m Φ×(m)G(t) | Weight (t) | |||||||||||||
| Slope (%) | Rev (r/min) |
Production capacity Ten thousand tons t/a (t/h) |
Type | Machine |
Multipoint hydraulic type
|
Block number | Bearings type | |||||||||||||||
| Motor (kW ) | Reducing gear | hydraulic pressure points | Rpm kNm | |||||||||||||||||||
| 1 | Φ4.0×30m | J973A | 3.5 | 0.47～1.4 | 60 (90) |
One side mechanical drive
|
ZSN4-315-092 190KW | ZSY630 Velocity ratio:63 |
2 | roll |
Single hydraulic gear
|
Φ4.81×0.65/0.692 G=22.5 | m=28 Φ6.16×0.4 G=11.74 |
329 | ||||||||
| 2 | Φ5.0×33m | J987 | 4.36 | 0.95 max1.27 |
110 (152) | One side flexible drive | YZP400L2-6 330KW | ZSY630 Velocity ratio:40 |
One side two points | 144 | 2 | roll |
Double hydraulic gear
|
Φ6.1×0.766/0.85 G=50 | m=32 Φ7.296×0.7 G=38 |
646 | ||||||
| 3 | Φ5.0×35m | J987A | 4.25 | 0.3～1.3 | 120 (165) | One side hydraulic drive | Two sides four points | 82.5×4 | 2 | roll |
Single hydraulic gear
|
Φ6.1×0.76/0.87 G=47.7 | m=36 Φ7.343×0.6 G=37.7 |
635 | ||||||||
| 4 | Φ5.9×38m | J991 | 4.25 | 0.5～1.5 | 200 (268) |
Two sides hydraulic drive |
Two sides four points | 87.5×4 | 2 | roll |
Single hydraulic gear
|
Φ7.2×0.96/1.0 G=81.46 | m=40 Φ8.8×0.68 G=46.4 | 960 | ||||||||
| 5 | Φ6.1×40m | J992 | 4.25 | 0.45～1.35 | 220 (305) |
Two sides hydraulic drive |
2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 988 | ||||||||||
| 6 | Φ6.4×45m | 4.25 | 0.45～1.5 | 240 (333) |
Two sides machine drive |
YP2-450L2-6 400×2 | ZSY800 velocity ratio:63 | 2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 1084 | |||||||||

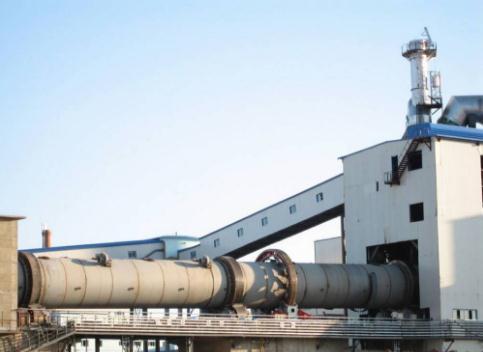

Mining Machine Φ5.0×33m Oxidation Pellet Rotary Kiln Metallurgy Machine
Mining Machine Φ5.0×33m Oxidation Pellet Rotary Kiln Metallurgy Machine
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
