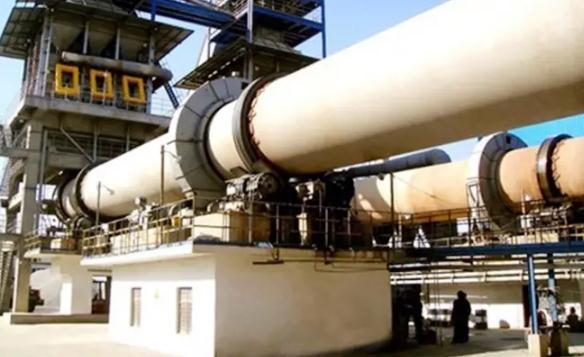

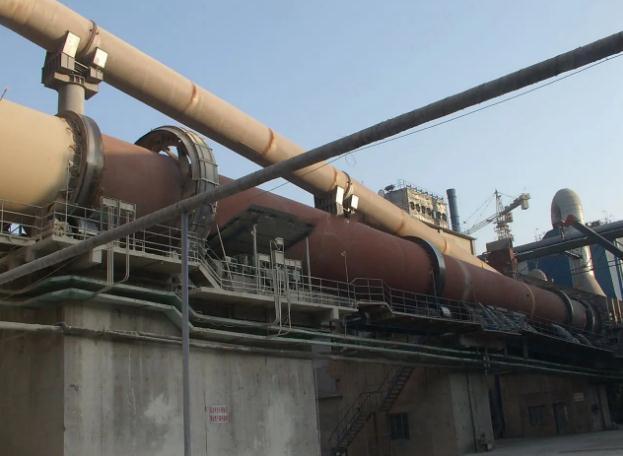

Zinc Oxide Metallurgy Rotary Kiln For Mining Hydraulic Pressure
Zinc Oxide Rotary Kiln Metallurgy Machine Rotary Kiln For Mining
1. Metallurgical chemical kiln introduction of metallurgy machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Zinc oxide rotary kiln product parameters of metallurgy machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| *1 | Φ3.45×52 | J968 | 0.35 ～0.8 | 5 | 350 |
Worm gear drive reducer A=450,i=12 |
75 | hydraulic pressure | roll | 412.5 |
A=3150,m=28,i=10.84 |
|||
| 2 | Φ4×58 | J978 | 0.35 ～3.5 | 5 | 400 | 250 | hydraulic pressure | slide | 341 | |||||
| 3 | Φ4.15×58.2 | J975 | 0.35 ～0.7 | 5 | 756 | 55 ×2 | hydraulic pressure | roll | 637 | fexible drive | ||||
3. Zinc Oxide Rotary Kiln Process flow of metallurgy machine:
(1) The zinc charge and coking coal are crushed into particles less than 40 mesh, and the zinc charge and coking coal are mixed at the ratio of 1∶0.30 ~ 0.35 to get the mixture.
(2) Make the mixture into the particle mixture with an effective diameter of 8-15 mm, and finally put the particle mixture into the rotary kiln for smelting.
(3) When zinc oxide ore or industrial slag with zinc content of 15% ~ 25% is smelted to produce zinc oxide, coke or coal can be greatly saved.
(4) The zinc oxide obtained by smelting has high productivity, good product quality and small nodulation amount.
