Zinc Oxide Metallurgy Rotary Kiln Hydraulic Pressure
Hydraulic Pressure Zinc Oxide Rotary Kiln Metallurgy Machine Rotary Kiln

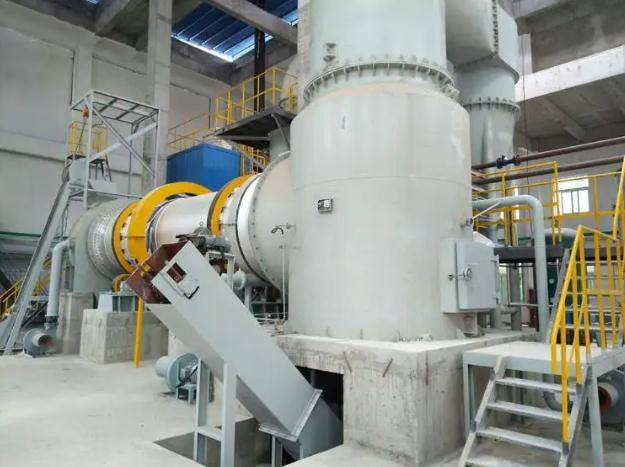

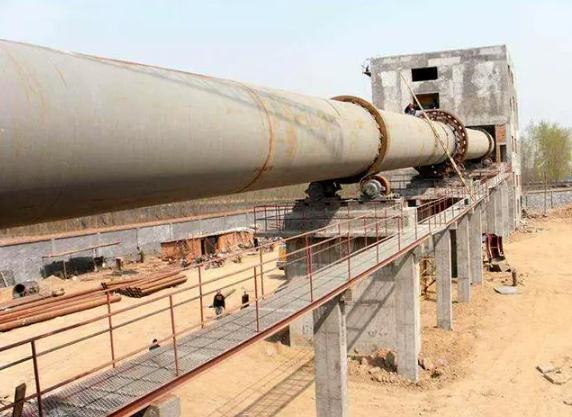

1. Metallurgical chemical kiln introduction of metallurgy machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Zinc oxide rotary kiln product parameters of metallurgy machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| *1 | Φ3.45×52 | J968 | 0.35 ～0.8 | 5 | 350 |
Worm gear drive reducer A=450,i=12 |
75 | hydraulic pressure | roll | 412.5 |
A=3150,m=28,i=10.84 |
|||
| 2 | Φ4×58 | J978 | 0.35 ～3.5 | 5 | 400 | 250 | hydraulic pressure | slide | 341 | |||||
| 3 | Φ4.15×58.2 | J975 | 0.35 ～0.7 | 5 | 756 | 55 ×2 | hydraulic pressure | roll | 637 | fexible drive | ||||
3. Zinc oxide features:
(1) After the active zinc oxide is added to the rubber, the rubber can have good wear resistance, tear resistance and elasticity.
(2) zinc oxide as white pigment. Because the active zinc oxide has good activation properties, in rubber products has been more and more widely used, such as in the V-shaped belt can not only equal to replace the ordinary zinc oxide, and can reduce the amount of 1/2-1/3, the rubber performance indicators are stable, vulcanization performance is not affected, reduce the production cost.
(3) Fine-grained zinc oxide can be used as medicine.
(4) Because of the strong ultraviolet absorption capacity of zinc oxide, people are more used for paint, ink, lacquer cloth coloring, printing and dyeing industry printing anti-dyeing agent, used in the match industry to neutralize the acid of cow skin glue, increase the adhesive effect, pharmaceutical industry as a rubber paste raw materials, in addition to the pigment.
(5) Zinc oxide is also used in pressure sensitive, photocatalytic, photoelectrode, coating, color TV development and other fields.
