220T Φ 3.5×54m Zinc Oxide Rotary Kiln And Zinc Oxide Complete Production Line

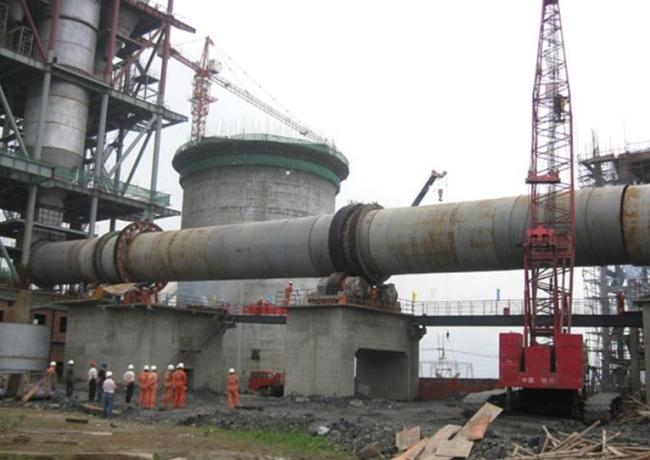

1. Introduction of Zinc Oxide Rotary Kiln Mining Machine Cement Rotary Kiln
Zinc oxide rotary kiln is a kind of metallurgical rotary kiln. Metallurgical rotary kiln is mainly used for magnetization roasting of lean iron ore in steel works of metallurgical industry. Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
Zinc oxide is produced in a rotary kiln by mixing zinc charge, coal and other auxiliary materials through a series of chemical reactions. Zinc oxide, also known as zinc white, is easy to disperse in rubber and latex, natural rubber, synthetic rubber reinforcing agent, active agent and vulcanizing agent, but also white rubber colorant and filler.
2. Technical parameters of Zinc Oxide Rotary Kiln Mining Machine Cement Rotary Kiln
| No. | Device name | Type | QTY | Total weight(kg) | Note |
| 1 | Cylinder part | φ3.5×54m | 1 set | 220000 | |
| 2 | Kiln head sealing device | 1 set | 1450 | ||
| 3 | Kiln end sealing device | 1 set | 1320 | ||
| 4 | Big gear | 1 set | 12350 | ||
| 5 | Gear cover | 1 set | 2860 | ||
| 6 | Supporting device | 3 set | 88950 | split sleeve bearing | |
| 7 | Driving device | 1 set | 19600 | include(1)-(6) | |
| (1) | Main motor | YSNP355M2-10 | 1 unit | 1680 | |
| (2) | Reducer | YNS1240-50 | 1 unit | 3400 | |
| (3) | Auxiliary motor | Y180L-4,22KW | 1 unit | 180 | |
| (4) | Auxiliary reducer | YNS440-22.4 | 1 set | 285 | |
| (5) | Pinion part | 1 set | 3080 | ||
| (6) | Base and coupling, etc | 1 set | 10975 | ||
| 8 | Catch wheel station | contained control | 1 set | 500 | |
| 9 | other | 1 set | 560 | ||
| 10 | Installation tools | 1 set | 7500 | ||
| Total | 355090 | ||||
3. Main technical properties OF Zinc Oxide Rotary Kiln Mining Machine Cement Rotary Kiln
| 2 Main Components | |||||||||
| Ⅰ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 600×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 17600 | |||||||
| Ⅱ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 700×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 19800 | |||||||
| Ⅲ gear belt | |||||||||
| Shape | (rectangle) | ||||||||
| Specifications | 600×φ4300 | ||||||||
| Material | ZG310-570 | ||||||||
| Hardness | HB | >170 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 17100 | |||||||
| Large gear ring specifications (module, number of teeth) | M=28,Z=198 | ||||||||
| Material | ZG35CrMo | ||||||||
| Hardness | HB | ≥185 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 12350 | |||||||
| Pinion specifications (module, number of teeth) | M=28 Z=21 | ||||||||
| Material | 35SiMn | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 1100 | |||||||
| Pinion shaft material | 35CrMo | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 1 | ||||||||
| Unit weight | kg | 980 | |||||||
Zinc Oxide Rotary Kiln Mining Machine Cement Rotary Kiln
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
