Active Lime Cement Rotary Kiln And Cement Rotary Kiln Factory Price
Active Lime Cement Rotary Kiln And Cement Rotary Kiln Factory Price
Lime rotary kiln technical characteristics:
♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
♦ Tyre,Support Roller,Open gear adopts alloy cast steel;
♦ Sliding bearing with large gap not scraping tile bearing;
♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
♦ Adopts hydraulic gear wheel;
♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
♦ A slow drive device.
Description of Lime Rotary Kiln (Active Lime Calcining Equipment):
Active lime can be widely used in a wide range of industries, such as steel, alumina, magnesium, calcium carbide, papermaking field, etc. As an important auxiliary material, active lime can not only help to improve the quality and output of steel, but also reduce the consumption and costs as well as ensure stable operation of steel industry. Considering the potential economic benefits of active lime for various fields, CITIC HMC Co., Ltd has developed the 1000t/d lime rotary kiln for customers worldwide. And now this machine has been well received by clients from Vietnam, Russia, Central Africa, and more.
Advantages of Lime Rotary Kiln (Active Lime Calcining Equipment):
1. High productivity makes it possible for our lime rotary kiln to be used in large active lime production line.
2. Open-type calcining rotary kiln has a simple structure, and can discharge sulfurous gases timely, which makes it quite suitable for steelmaking.
3. It is capable of calcining 10 to 50mm fine limestone directly.
4. Vertical preheater has been equipped at the end of the kiln to make full use of high-temperature gases generated during calcining. It can preheat limestone to the decomposition conditions. In this way, it helps not only to increase the output, but also to decrease the heat consumption.
5. The equipped vertical cooler at the head of the kiln can help cool the high-temperature limestone, as well as make it convenient to convey and store. Besides, it can effectively increase the temperature inside the kiln, thus reducing the fuel consumption.
6. Waste gases, discharged from the vertical preheater, have a temperature ranging from 280°C to 350°C, and their dust content is about 20g/Nm3. So it is easy to deal with these gases according to the requirements of environmental protection.
7. With stable performance, our active lime calcining equipment is also suitable for mine exploitation
Product Parameters of Cement Rotary Kiln
| NO | Specification(m) | Drawing no. | The basic parameters | The main reducer | Main motor | Weight (t) | |||||
| speed r/min | slope % | capacity t/d | model | Speed ratio i | model | power KW | speed r/min | ||||
| 1 | Φ2.5×78 | J919 | 0.49~1.47 | 3.5 | 70~96 | PT800(3) | 61.88 | 100 | 327.5 | ||
| 2 | Φ3.2/3.4×60 | J935 | 0.67~2.0 | 3 | 400 | PT800(3) | 55.09 | 100 | 340.31 | ||
| 3 | Φ3.5×115 | 928 | 0.46~1.38 | 3.5 | 450 | PT800(3) | 61.88 | 75×2 | 776.81 | ||
| 4 | Φ3.6/3.8×70 | J939 | 0.4~2.0 | 3 | 600~660 | BST-1790 | 46.146 | 160 | 480.4 | ||
| 5 | Φ4.2×50 | J940A | 0.33~1.8 | 3 | 600~660 | PT900(3) | 56.43 | 160 | 521.3 | ||
| 6 | Φ4.2×50 | J944 | 0.2~1.8 | 3 | 600~660 | PT900(3) | 56.43 | 160 | 579 | ||
| 7 | Φ3×46 | J922A | 0.45~1.8 | 3 | 200~220 | ZSY450-63 | 63 | SZN4-225-21 | 55 | 1000 | 201.8 |
| 8 | Φ3.5×54 | J969A | 0.6~1.8 | 3.5 | 300~350 | ZSY560-56 | 56 | YP355S-8 | 132 | 750 | 340.7 |
| 9 | Φ4.3×64 | 0.194~1.94 | 3.5 | 800 | ZSY630-71 | 71 | YZP355L-6 | 250 | 980 | 557.5 | |
| 10 | Φ4.9×69.5 | 0.179~1.79 | 3.5 | 1000 | ZSY710-63 | 63 | ZSN4-355-092 | 315 | 1000 | 750 | |

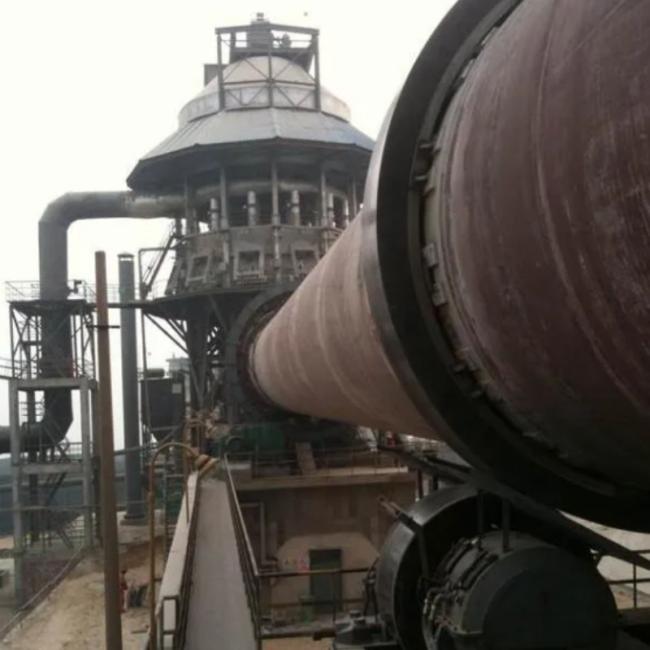

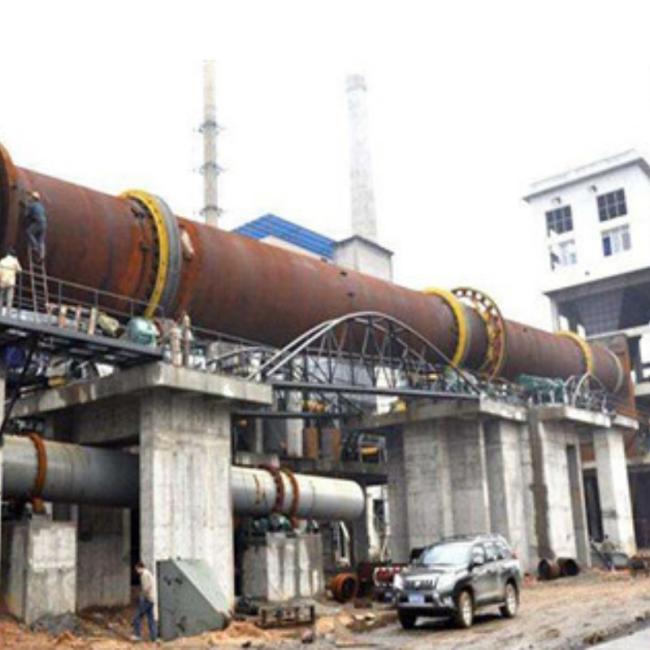

Product Display of Cement Rotary Kiln
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
