Lifting Hoist Head Sheave Friction Lining For Mine Hoist Mining Machine Spare Parts
Price:
$100.00
MOQ:
>=1 Tons
Delivery Time:
Negotiable
Brand:
ZTIC
Product Description
Products Description

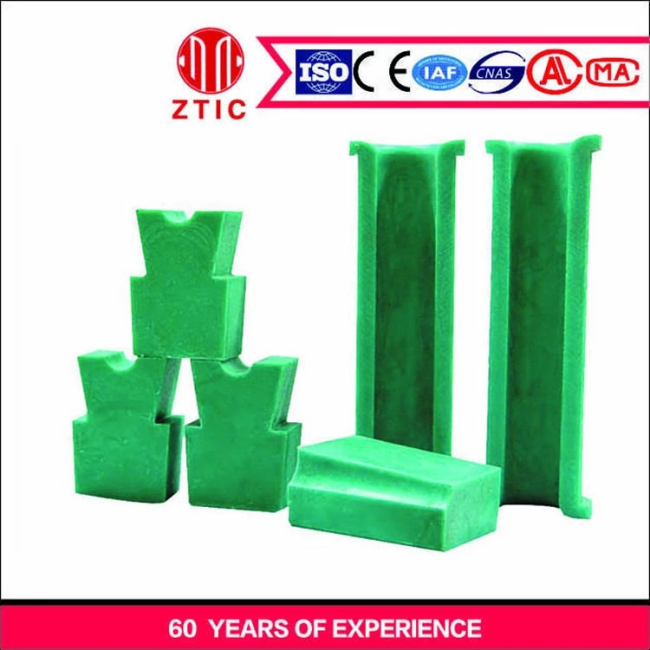

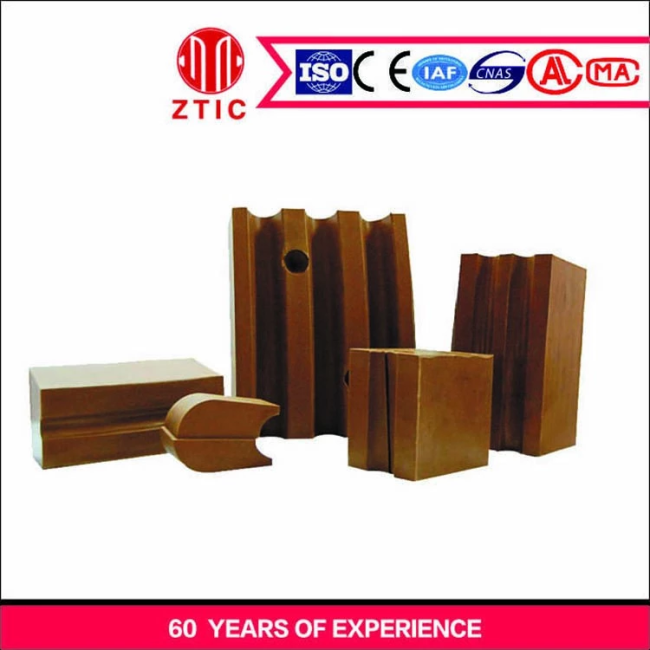

lifting Hoist Head Sheave friction lining
Lifting Hoist Head Sheave friction lining material experienced the process of polyvinyl chloride, polyurethane, polyurethane, and
thermosetting materials. The first three materials designed the friction coefficient in 0.2 ~ 0.23, the last material’s friction
coefficient is more than 0.25 ( high friction liner).
High friction liner is divided into domestic high friction, imported materials to suppress high friction, pure imported high
friction three. The users can choose at will according to their needs. Tower hoist liner is a rope groove, floor type hoist liner
two rope grooves, mainly for the convenience of turning rope groove. In return, they also improved the liner service life and the
usage rate of liner material. The friction liner is fixed on the friction wheel by fixed block and pressing block through bolts.
thermosetting materials. The first three materials designed the friction coefficient in 0.2 ~ 0.23, the last material’s friction
coefficient is more than 0.25 ( high friction liner).
High friction liner is divided into domestic high friction, imported materials to suppress high friction, pure imported high
friction three. The users can choose at will according to their needs. Tower hoist liner is a rope groove, floor type hoist liner
two rope grooves, mainly for the convenience of turning rope groove. In return, they also improved the liner service life and the
usage rate of liner material. The friction liner is fixed on the friction wheel by fixed block and pressing block through bolts.
|
GM-3 lifting Hoist Head Sheave friction lining Mechanical properties
|
|
|
|
|
||||
|
No.
|
Item
|
Unit
|
Measure results
|
Remark
|
||||
|
1
|
density
|
g/cm3
|
1.36
|
|
||||
|
2
|
hardness
|
HD
|
70-74
|
GB/T2411
|
||||
|
3
|
impact strength
|
KJ/M2
|
9.72
|
GB1843
|
||||
|
4
|
tensile strength
|
Mpa
|
19.10
|
GB1040
|
||||
|
5
|
Bending strength
|
Mpa
|
26.22
|
GB9341
|
||||
|
6
|
Flexural modulus
|
Mpa
|
920
|
GB9341
|
||||
|
7
|
elongation at break
|
%
|
10.6
|
GB1040
|
||||
|
8
|
compressive strength
|
Mpa
|
45.6
|
GB1041
|
||||
|
9
|
thermal decomposition
temperature |
℃
|
320
|
|
||||
|
Comparison between GM-3 lifting Hoist Head Sheave friction lining and K25 lifting Hoist Head Sheave friction gasket equal power
abrasion test
|
|
|
|
|
|
|
|
|||||||
|
Sample No.
|
|
Try before weight(g)
|
Try after weight(g)
|
abrasion(g)
|
Total abrasion(g)
|
(cm2)
|
Equal power abrasion
(10-6cm3/KN.m) |
|||||||
|
K25
|
1#
|
549.70
|
549.23
|
0.47
|
0.75
|
0.481
|
5.29
|
|||||||
|
|
2#
|
548.12
|
547.84
|
0.28
|
|
|
|
|||||||
|
GM-3
|
3#
|
513.44
|
513.15
|
0.29
|
0.56
|
0.412
|
5.29
|
|||||||
|
|
4#
|
523.22
|
522.95
|
0.27
|
|
|
|
|||||||
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping .
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
