Cement Vertical Mill 50~230 Tph Cement Plant Equipments

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 30 workday
Brand: ZTIC
Product Description

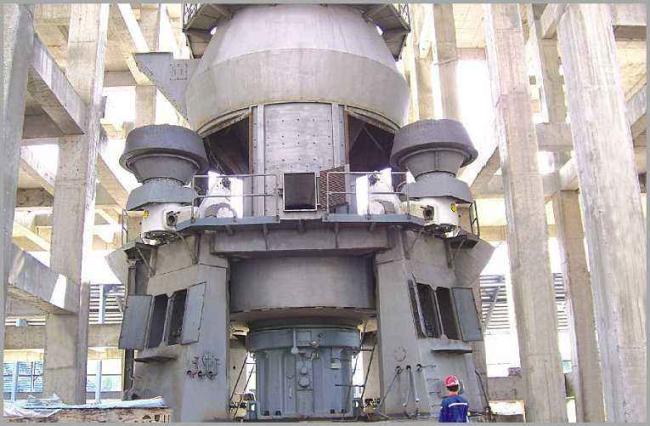

LK series 50~230 tph Cement Vertical Mill cement industry machine



Cement Vertical Mill LK series



Application Industry Cement Plant, Grinding Station
Output 55~250 t/h
Specific Surface 3300~3800 cm²/g
Power Consumption of System 25~30 kWh/t





Cement Vertical Mill Features



1. Technique and technology is mature and stable

CITICIC’s cement vertical roller mill in the production of cement specific surface area up to 3800 cm²/ g with stable and reliable quality, it already have been the ability completely to replace tube mill.

2. Reducing the power consumption of cement clinker preparation effectively

According to the display of pulverized coal measured data, it can be saving electricity above 30% use of vertical roller mill production per ton cement clinker than traditional tube mill, and the power saving effect is very remarkable.

3. Stable, high-efficiency and environmental protection

There is a low vibration and noise in overall system, and equipment with whole sealing, system working under negative pressure with no dust overflow, clean environment. Therefore, cement vertical roller mill meets the national environmental protection requirements. With working mechanism changing, cement vertical roller mill can be reduced friction and improved service life.





Cement Vertical Mill Specifications



Model Grinding diameter
d(mm)
Roll diameter
d(mm)
Roller number
(n)
Standard power
P(kw)
capacity
Q(t/h)
LKCM30.31 3,000 1,600 3 1250 55~60
LKCM32.31 3,200 1,700 3 1600 65~80
LKCM35.41 3,500 1,800 4 1800 85~100
LKCM40.41 4,000 1,900 4 2500 115~125
LKCM43.41 4,300 2,120 4 3000 135~145
LKCM46.41 4,600 2,240 4 3350 150~160
LKCM48.41 4,800 2,240 4 3550 170~180
LKCM50.41 5,000 2,360 4 3900 190~200
LKCM53.41 5,300 2,500 4 4600 210~230
LKCM56.61 5,600 2,500





As a professional manufacturer and supplier of vertical mill in China, we can also provide you with various other machines, such as vertical coal mill, jaw crusher, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system.



Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need vertical slag mill, please don't hesitate to contact us.
