500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality
cement rotary kiln and lime rotary kiln with 50-10000tpd for cement production line

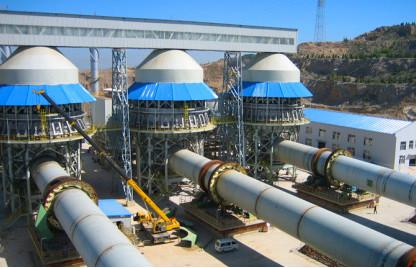

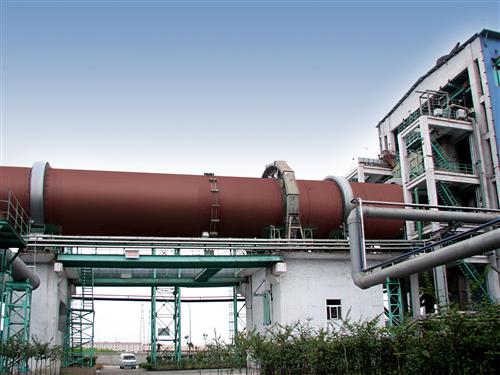

Rotary kiln is also known as rotation kiln. There are many kinds of rotary kiln produced by our company,according to applicable industries, it is divided into metallurgical rotary kiln and chemical rotary kiln; According to the applicable materials, it can be divided into cement rotary kiln, lime kiln, ceramic sand rotary kiln, metal magnesium rotary kiln, bauxite kiln etc.The rotary kiln is composed of barrel, supporting device, catch wheel supporting device, transmission device, movable kiln head, kiln tail sealing device, and coal injection pipe device.
Technical Parameters of rotary kiln
| Product Specification (m) | Kiln dimensions | Motor power (kw) | Total weight (t) | note | ||||
| Diameter(m) | Length (m) | Obliquity (%) | Capacity (t/d) | Rotation speed (r/min) | ||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
