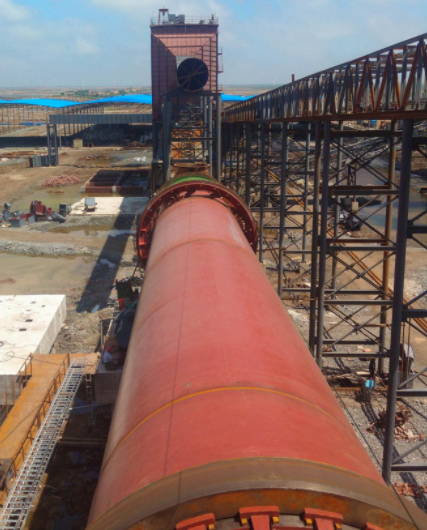

Metallurgy Machine φ 4.5×110m Laterite Nickel-Iron Rotary Kiln
Metallurgy Machine Φ 4.5×110m Laterite Nickel-Iron Rotary Kiln
1. Introduction
Luo mine adopts domestic advanced technology to develop large laterite nickel-iron rotary kiln series products, which can meet the supporting production line of large laterite nickel smelting project. Company has the domestic first-class laterite nickel iron rotary kiln wu development research and design team, perfect test and detection methods of laterite nickel iron rotary kiln and superior laterite nickel iron manufacturing equipment and manufacturing technology of rotary kiln, has shaped into a complete laterite nickel iron rotary kiln design, manufacture, installation and commissioning services for the integration of technology and the production system.
2. Luo Mine laterite nickel-iron rotary kiln common specifications and models
φ4.4×100m, φ5.2×118m, φ 4.5×110, φ 4.5×110.
3. Technical parameters of laterite nickel-iron rotary kiln
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×110 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
