Large Disc Filter Ore Dressing Equipment For Mining Stone Industry
Disc Filter Of Ore Dressing Equipment Mining Stone Industry Large Disc Filter

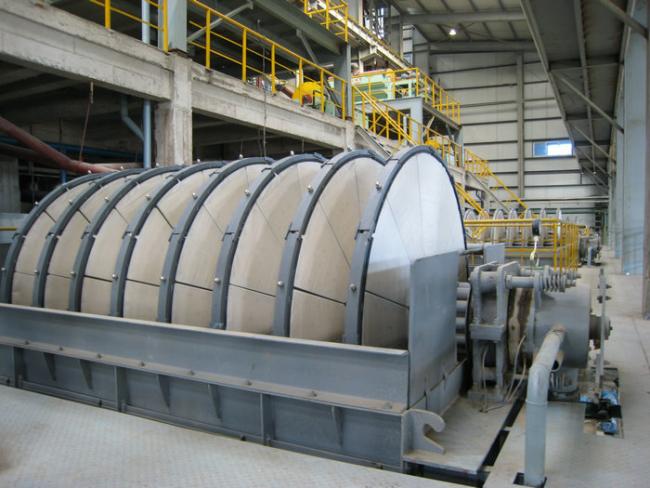

GPY Series Disc Filter Of Ore Dressing Equipment
1. Main features of GPY series disc filter of ore dressing equipment :
(1) The transmission device has compact structure, reliable operation and stepless speed regulation.
(2) equipped with finite moment coupling, overload protection, can ensure the safe and reliable operation of the host.
(3) The center shaft is welded structure, light weight, good rigidity, high strength, and large filtrate displacement. The bushing is SP composite material, light weight, wear-resisting.
(4) Adopt new star-dot plastic fan plate, light weight, high strength, good hydrophobicity, high opening rate, good dehydration and cake removal effect, low water filter cake, long service life, corrosion resistance, convenient decoration.
(5) Stainless steel wire woven filter cloth, good filtration effect, low moisture filter cake, high cake removal rate, long service life.
(6) Adopt slurry blade agitator floating sealing packing box, allowing agitator shaft to float to a certain extent, good sealing effect, convenient replacement of seals.
(7) Instant blowing and suspension scraper unloading device, not only high cake unloading rate (up to more than 90%), and the scraper can swing with the filter plate, filter plate stress state is good, reduce the load of the host.
(8) In addition to the above advantages, the size of the foundation and the size of the discharge port of gPY20-120 new series products are designed according to PG products, which is convenient for the transformation of the old factory and the updating of equipment.
2. GPY series disc filter of ore dressing equipment technical data:
| Unit | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | |
| Filter area | m2 | 40 | 60 | 80 | 100 | 120 |
| Dial Diameter | mm | 2700 | ||||
| Number of disk | 4 | 6 | 8 | 10 | 12 | |
| Spindle speed | r/min | 1-0.167 | 0966-0.215 | |||
| Main motor power | Kw | 2.2 | 4 | |||
| Speed of agitator | r/min | 73 | ||||
| Mixing motor Work rate | Kw | 2.2 | 4 | |||
| Feed size | Less than 0.063 mm fraction content is not more than 35-40% | |||||
| The material concentration | g/l | 250-350 | ||||
| Capacity | t/h | 8-12 | 12-18 | 16-24 | 20-30 | 24-36 |
| Product water | % | 22-24 | ||||
| Dimensions (L×W×H) | mm | 3217×3450×3275 | 4017×3450×3275 | 4817×3450×3275 | 5617×3450×3275 | 6417×3450×3275 |
| Weight | Kg | 5485 | 7736 | 8754 | 10099.4 | 11189 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
