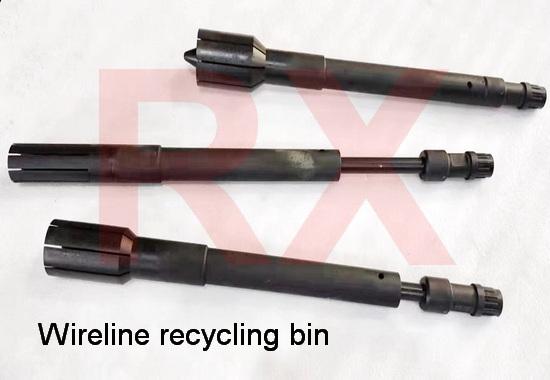

2 Inch The Wireline Recycling Bin Wireline Fishing Tool

I Introduction.

The Wireline Recycling Bin is used to find and salvage single or multiple strands of wire that have been cut or broken.

II General Technical Parameters

Tools can be manufactured to any size required .

III  Structural features and use:
The Wireline Recycling Bin is composed of an outer cylinder, a mandrel, a finder cylinder, a retaining ring, a taper sleeve, a cone, an upper joint and an elastic cylindrical pin. The specific structure is shown in the attached drawings.
The barrel of the finder is mainly used to determine the position of the broken end of the wire and form it into a ball. The broken steel wire clip is pulled up in the gap between the cone sleeve and the cylinder body, and the contact surface of the cylinder body and the cone sleeve is made into a tapered surface to facilitate the tightening of the steel wire. The cone surface in front of the cone sleeve plays a guiding role in the downhole process.
IV, matters needing attention:
1. Connect the steel wire recovery barrel to the bottom of the basic tool string and go down the well;
2. When not in use temporarily, apply grease to the thread and place it with wire protection.
