Industrial PVC Insulated BV Flexible Electric Wire Cable

Name: Industrial PVC Insulated BV Flexible Electric Wire Cable
Brand: Fuzhou Tuli Electromechanical Technology Co.,Ltd.

Price Negotiable

Price: To be negotiated

MOQ: Negotiable

Delivery Time: 10-35days

Brand: FZTL/OEM

Product Description

PVC Insulated BV , Flexible Electrical Wire Cable, Building Wire Power Cable Industrial Electric Wire And Cable

Product Description:

PVC insulated wire is suitable for AC rated voltage 450/750V and below the fixed installation of power plant. In normal use, the maximum conductor temperature of 70 ℃ temperature of not less than 0 ℃.

Detailed Images:

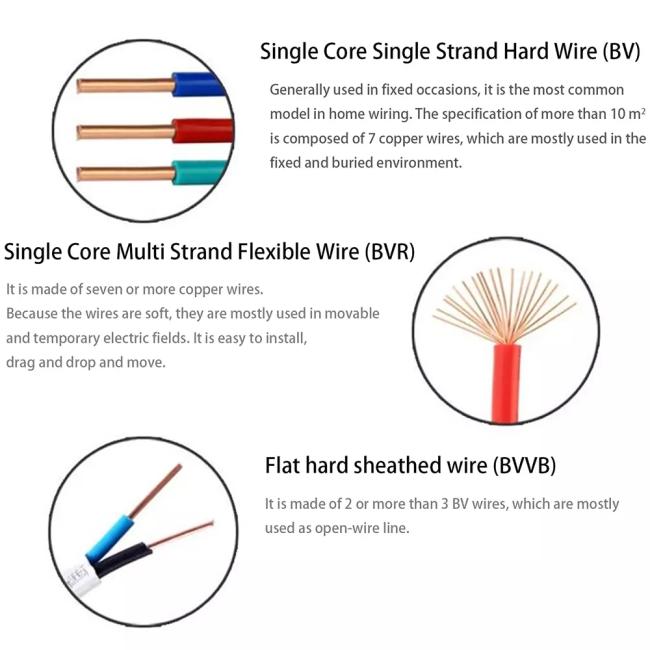

The PVC insulated wire we produce are BV, BLV, BVR, BVVB, BLVVB and other customization types required by customers. The following are some specifications, sizes and technical parameters of our products.

BV 300/500V
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Max Outside Diameter (mm2)	Reference Weight (kg/km)	Conductor Resistance at 20℃ (Ω/km)
0.5 0.75	1/0.80 1/0.97	2.4 2.6	8.5 11.1	36.0 24.5
1.0	1/1.13	2.8	13.9	18.1

BV BLV(BV-105) 450/750V
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Max Outside Diameter (mm2)	Reference Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Max Outside Diameter (mm2)	Copper	Aluminum	Copper	Aluminum
1.5	1/1.38	3.3	20.3		12.1
2.5	1/1.78	3.9	31.6	17	7.41	11.8
4	1/2.55	4.4	47.1	22	4.61	7.39
6	7/0.85	4.8	50.3	29	3.08	4.91
10 16	7/1.35 7/1.70	7.0 8.0	119 179	62 78	1.83 1.15	3.08 1.91
25 35	27/2.04 27/2.52	10.0 11.5	281 381	118 156	0.727 0.524	1.20 0.868
50 70	19/1.78 19/2.14	13.0 15.0	521 734	215 282	0.387 0.268	0.641 0.443
95 120	19/2.52 37/2.03	17.5 19.0	962 1180	385 431	0.193 0.153	0.320 0.253
150 185	37/2.25 37/2.52	21.0 23.5	1470 1810	539 666	0.124 0.0991	0.206 0.164
240 300 400	61/2.25 61/2.52 61/2.85	26.5 29.5 33.0	2350 2930 3870	857 1070 1390	0.0754 0.0601 0.0470	0.125 0.100 0.0778

BVVB BLVVB 300/500V
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Max Outside Diameter (mm2)		Reference Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Copper	Aluminum	Copper	Aluminum	Copper	Aluminum
20.75 21.0	21/0.97 21/1.13	1.67.0 4.87.4		43.7 51.0	24.5 18.1
21.5 22.5	21/1.38 21/1.78	5.48.4 6.29.8	6.2*9.8	65.9 95.7	12.1 64.9	7.41	11.8
24 26	27/0.85 27/1.04	7.211.5 8.013.0	6.811.0 7.412.0	146.0 200.0	80.7 104	4.61 3.08	7.39 4.91
210 30.75	27/1.35 31/1.38	9.616.0 4.69.4	9.6*16.0	323.0 62.6	177	1.83 24.50	3.08
31.0 31.5	31/1.13 31/1.38	4.89.8 5.411.5		74.3 95.6		18.10 12.10
32.5 34	31/1.78 37/0.85	6.213.5 7.416.5	6.213.5 7.015.0	140 220	93.9 123	7.41 7.41	11.8 7.39
36 310	37/1.04 37/1.35	8.018.0 9.622.5	7.417.0 9.622.5	295 485	153 261	4.61 1.83	4.91 3.08

BVR 450/750V
Nominal Section (mm2)	Number and Diameter of Wire Core (mm)	Max Outside Diameter (mm2)	Reference Weight (kg/km)	Conductor Resistance at 20℃ (Ω/km)
2.5 4	19/0.41 19/0.52	4.2 4.8	34.7 51.4	7.41 4.61
6 10 16	19/0.64 49/0.52 49/0.64	5.6 7.6 8.8	73.6 129 186	3.08 1.83 1.15
25 35	98/0.58 133/0.58	11.0 12.5	306 403	0.727 0.524
50 70	133/0.68 189/0.68	14.5 16.5	553 764	0.387 0.268

Technical Performance:

1. The finished insulated wire and cable can withstand the AC voltage test in the following table after being placed in room temperature water at 20± ℃ for at least 1 hour.

2. The wire has good performance in electrical insulation properties, mechanical properties, mechanical properties and non flammable performance, reliable quality, convenient and durable.

3. The insulation or sheath surface of the finished wire shall have the name of the manufacturer, the type and the continuous mark of the voltage.


Test Name	Test Items		Test Value
			Rated voltage of wire
			300/500V	450/750V
Test of Insulation Wire Core Voltage	Test Voltage according to the insulation thickness	0.6 mm and below	1500
		over 0.6 mm	2000
	Voltage applied time not less than		5
Finished Wire Voltage Test	Test voltage		2000
	Voltage applied time not less than		5

Packaging And Shipping:

Packaging Details:

Packaging can be customized as required

Port: Fuzhou

Shipping:Support Sea Freight/Air Freight

FAQ

Q: What payments can be accepted?
A: T/T in advance, D/P at sight, L/C at sight, Paypal are available.

Q: Do you accept small order?
A: Yes, sample order is available.

Q: How to ship the cargos?
A: We usually ship by Airline, courier, and by sea.

Q: What's your warranty policy?
A: Our warranty period is 12months. Usually, all our products will be tested 100% one by one before delivery.

Q: Are OEM & ODM available?
A: Yes, both are available.

Q: Can we have our logo to be printed on the units or package?
A: For bulk order, we can print logo, customize package as your demands.

Q: Can we have one sample order or small order to try?
A: Yes, welcome to order small quantity for test at first.

Q: How could I get samples?
A: We can provide samples to you via your courier freight collect account.
