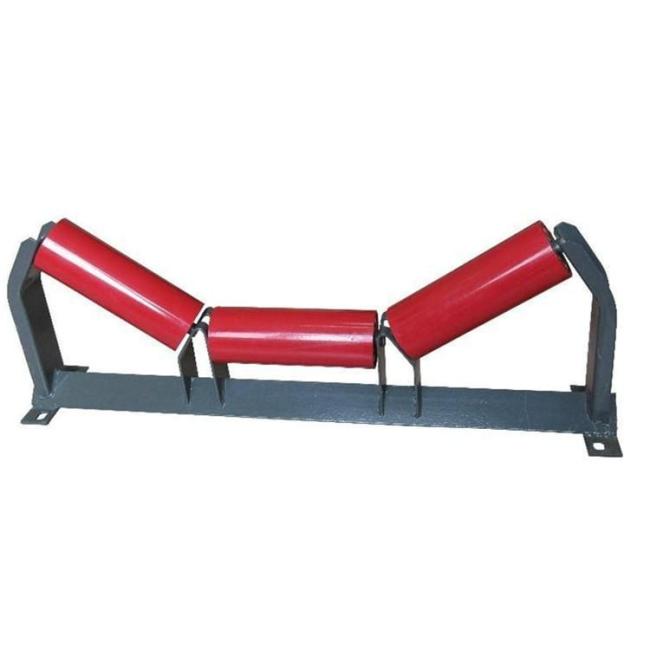

Equal Troughing 20 Degree Carrier Idler TD75 Heavy Duty Steel Rollers
Equal Troughing 20 Degree Carrier Idler TD75 Heavy Duty Steel Rollers
High Quality Equal Troughing Carrying Idler For Belt Conveyor
Troughing/Carrying Idler support the belt and load in the transport section of the conveyor, and are designed and manufactured with trough angels of 20°, 35°, 45°, and any other angle are also manufactured as per customer's design and drawings of the trough carrying idler.
Product raw material
1. Pipe: High precision ERW special pipe with small out of roundness. Material Q235 equal to Europe S235JR
2. Shaft: High precision cold-drawn round bar, Material 45# equal to DIN C45.
3. Bearing: Deep groove ball bearing with clearance C3. Double Seal, Quality Grade P5Z3
4. Bearing House: Cold drawn steel plate, material 08AL equal to DIN ST12/14
5. Inner Seal: Lip type seal, Material Nylon.
6. Labyrinth Seal: Main Seal System, Material is Nylon.
7. Lubricating Grease: #2 Long lasting lubricating grease, working condition -20°c to 120°c
8. Surface Treatment: Electrostatic Powder Coating
| Description | carrier trough conveyor idler steel conveyor roller with support |
| Type | Carrier, hanging, troughing, transition |
| Pipe / tube |
1) Material : Q235 carbon steel equal to DIN S235JR 2) Diameter : 114 mm /4.5 inch 3) Length: 150mm ~ 600 mm 4) Thickness : 1.0 ~4.5 mm 5) With steel end cpas |
| Type conveyor | DTII DTII(A) TD75 |
| Shaft / axis |
1) Material : A3 / 45# steel equal to DIN C45 2) Diameter: 20 25 mm 3) Shaft end type: DTII TD75 flat |
| Bearing |
1) Type : Deep groove ball bearing with C3/C4 2) Size: 6204 6305 3) Brand: C&U HRB LYC ZWZ NWH SKF NSK FAG 4) Stamepd bearing and stamped bearing housing |
| Seals |
1) Multiple labyrinth water proof dust proof 2) Type: DTII / TR made in nylon, methanl 3) Grease : Lithium grease lubricant |
| Welding | Automatic double end weld bearing housing |
| Surface | Electric static spraying painting |
| Color | Red, blue, yellow or as require |
| Certificate | ISO9001:2008 MA TUV CEMA DIN |
| Application | Used for coal mine, power plant, port and so on |
| Service life | More than 30,000 hours |
Feature of 35 degree carrying idler
1) return conveyor idler roller - used for transporting whole pieces material & supporting returning belt
2) carrying conveyor idler roller - used for transporting bulk materials
3) impact conveyor idler roller - reduce the impact of blanking on conveyor belt
4) guide/friction/tapered/crown face conveyor idler roller - adjust the conveyor belt deviation
5) rubber sprial conveyor idler roller - to prevent corrosion, sticky rollers, belt, tear
6) conveyor idler roller with rubber discs/steel sprial conveyor roller - clear conveyor belt
7) suspension conveyor idler roller - auto-adjusting, slow the impact of bulk materials, as well as to facilitate disassembly and assembly
