Product Description
Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal
Electro-Optical Q-Switch Material LGS Crystals ( Lanthanum gallium silicate )
Introduction :
Langasite crystal (La3Ga5SiO14, LGS) is a multifunctional intraocular crystal, belonging to the space group P321, point group 32, has been reported to be promising new piezoelectric materials for fabrication of surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices. The devices made of langasite crystal could be used at high temperatures up to 900℃ because of its high thermal stability.
Material Properties :
| Crystal Structure | regional system, group 33 a= 8.1783 c = 5.1014 |
| Growth Method | Czochralski |
| Hardness | 6.6 Moh's |
| Density | 5.754 g/cm3 |
| Melt Point | 1470 o C ( phase transition point: N/A) |
| Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
| Acoustic velocity, SAW | 2400 ( m/sec ) |
| Frequency constant, BAW | 1380 ( kHz/mm ) |
| Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
| Dielectric Constant | ε11/ε0=18.27 ε33/ε0=56.26 |
| Piezoelectric Strain Constant | d11=6.3 d14=5.4 |
| Inclusions | N0 |

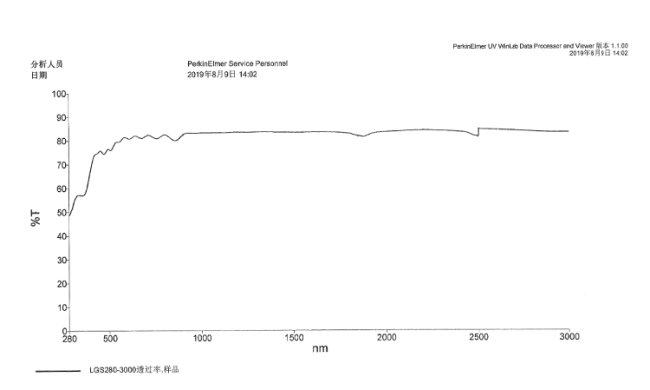

LGS Transmission Curve :
Main Advantages :
- The electromechanical coupling coefficient is (3-4 times of quartz)
- High thermal stability
- The low equivalent series resistance ratio
Product Details :
