High Power Lasers Material Single Crystals Slabs Nd YAG Crystal
Price:
Negotiable
MOQ:
1
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description

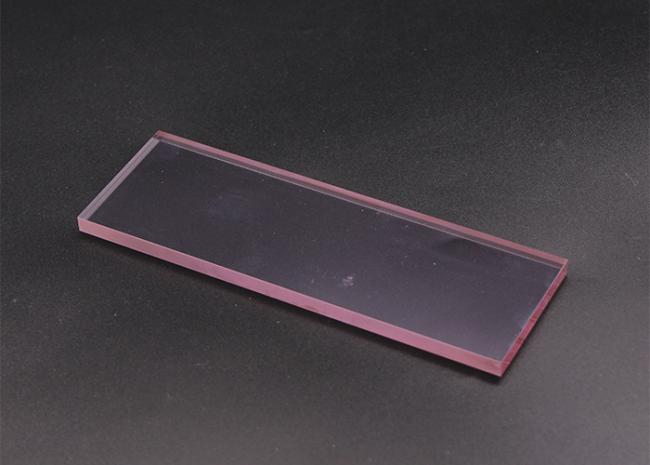

High Power Lasers Material Nd:YAG (Neodymium Doped Yttrium Aluminum Garnet) Single Crystals Slabs
Introduction :
Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.
Applications :
- Nd:YAG can produce blue laser with the frequency-doubling of 946nm
- Nd:YAG can be operated in a very high power laser up to kw level
- Nd:YAG can be Q-switched with Cr4+YAG directly
- Due to the cubic symmetry and high quality, Nd:YAG is easy to operate with TEM00 mode
Main Advantages :
- High gain
- Low threshold
- High efficiency
- Low loss at 1064nm
- High Optical quality
- Good thermal conductivity and shock characteristics
- Applicable to many laser working modes(continuous ,pulse ,Q-switch ,mode lock)
Crystro offers :
| Dimention | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| Wave Front Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Damage Threshold | >500MW/cm2 |
