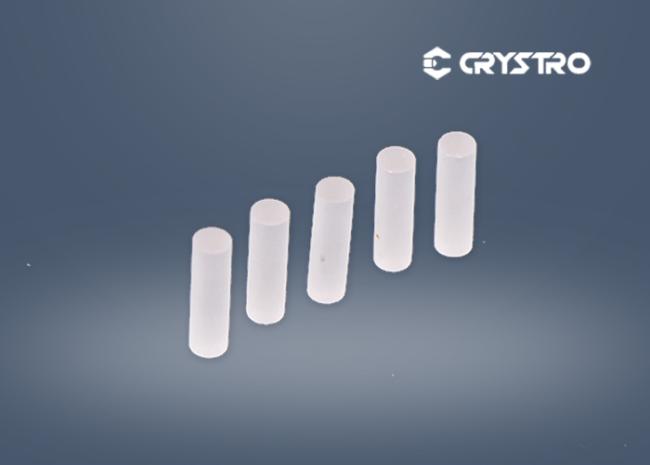

Low Optical Loss Faraday Rotator Crystal TGG Crystal Rods
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
4 weeks
Brand:
Crystro
Product Description
Introduction :
Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.
Main Features :
- Large Size Boule Diameter: up to 4”
- Extinction Ratio Typical: >35 dB High Grade: >40 dB
- Verdet Constant 40 rad/T/m at 1064 nm
- Refractive Index 1.95 at 1064 nm
Properties :
| Chemical Formula | TB3Ga5O12 |
| Lattice Parameter | a=12.355Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
Crystro TGG rods specification :
We can offer to customize TGG crystal sizes upon your request.
| Orientation | [111] within ±15 arc min |
| Wavefront Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | Maxφ101.6mm (4 inches) |
