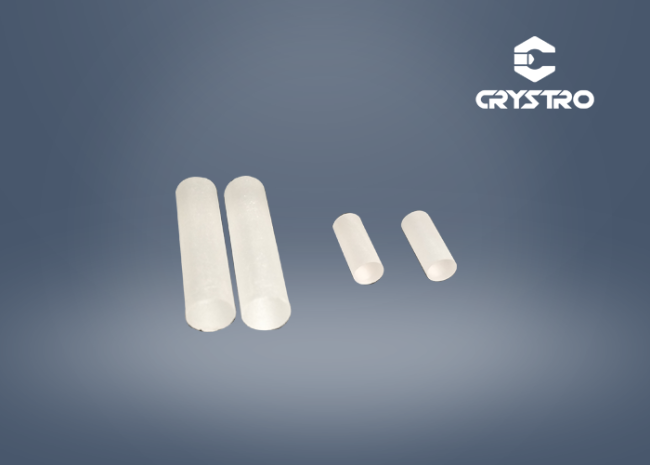

Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal Rods
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description
Faraday Isolator Material Terbium Scandium Aluminum Garnet TSAG Crystal
Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers .It is also an ideal visible and infrared magnetic crystal ,It has the advantages of high verdet constant ,thermal and mechanical performance .
Key Features:
1. Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
2. Absorption 30% lower than TGG(＜3000ppm/cm at 1064nm)
3. Make your isolator small
Material Properties :
| Property | Value |
|---|---|
| Transmission Range | 400-1600nm |
| Crystal Structure | Cubic, Space group la3d |
| Chemical Formula | Tb3Sc2Al3O12 |
| Lattice Constant | a=12.3Å |
| Growth Method | Czochralski |
| Density | 5.91g/cm3 |
| Melting Point | 1970℃±10℃ |
| Verdet (red/M/T) |
218/152/65@532nm/633nm/1064nm |
Crystro offers :
| Property | Value |
|---|---|
| Orientation | ±15′ |
| Wavefront Distortion | ＜λ/8 |
| Extinction Ratio | ＞30dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | ＜0.1mm @ 45° |
| Flatness | ＜λ/10 at 633nm |
| Parallelism | ＜3′ |
| Perpendicularity | ＜5′ |
| Surface Quality | 10/5 |
| AR coating | ＜0.2% @ 1064nm |
Product details :
