TSAG Terbium Scandium Aluminum Garnet Crystal Block For Fiber Lasers
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
4 weeks
Brand:
Crystro
Product Description
Customized TSAG Terbium Scandium Aluminum Garnet Crystal Block for fiber lasers
Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers. It is also an ideal visible and infrared magnetic crystal, It has the advantages of high verdet constant, thermal, and mechanical performance.
Material Properties :
| Property | Value |
|---|---|
| Transmission Range | 400-1600nm |
| Crystal Structure | Cubic, Space group la3d |
| Chemical Formula | Tb3Sc2Al3O12 |
| Lattice Constant | a=12.3Å |
| Growth Method | Czochralski |
| Density | 5.91g/cm3 |
| Melting Point | 1970℃±10℃ |
| Verdet (red/M/T) |
218/152/65@532nm/633nm/1064nm |

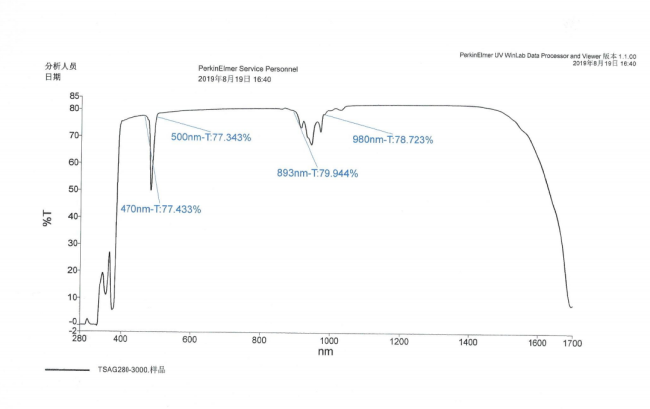

Transmission Curve:
Crystro offers :
| Property | Value |
|---|---|
| Orientation | ±15′ |
| Wavefront Distortion | ＜λ/8 |
| Extinction Ratio | ＞30dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | ＜0.1mm @ 45° |
| Flatness | ＜λ/10 at 633nm |
| Parallelism | ＜3′ |
| Perpendicularity | ＜5′ |
| Surface Quality | 10/5 |
| AR coating | ＜0.2% @ 1064nm |

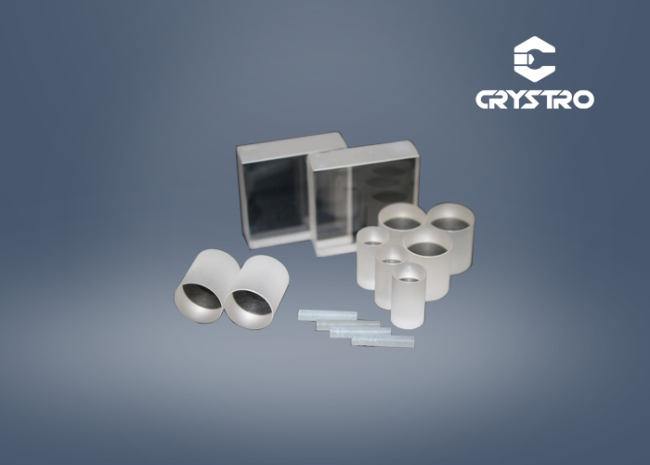

Product details :
