AR Coating TSAG Faraday Crystal Rods Magneto Optical Crystals
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description
Good Thermal And Mechanical Properties TSAG Faraday Crystals Rods
TSAG Crystal (Tb3Sc2Al3O12 ) is an excellent magneto-optical crystal,can be used in the wavelength range of 400-1600 nm. Its verdet constant 20% higher than TGG crystal, and also has good thermal and mechanical properties. So it a key isolator material for the next generation of high-power lasers.
Features:
1.Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
2. Absorption 30% lower than TGG(＜3000ppm/cm at 1064nm)
3. Make your isolator small
Material Properties :
| Property | Value |
|---|---|
| Transmission Range | 400-1600nm |
| Crystal Structure | Cubic, Space group la3d |
| Chemical Formula | Tb3Sc2Al3O12 |
| Lattice Constant | a=12.3Å |
| Growth Method | Czochralski |
| Density | 5.91g/cm3 |
| Melting Point | 1970℃±10℃ |
| Verdet (red/M/T) |
218/152/65@532nm/633nm/1064nm |

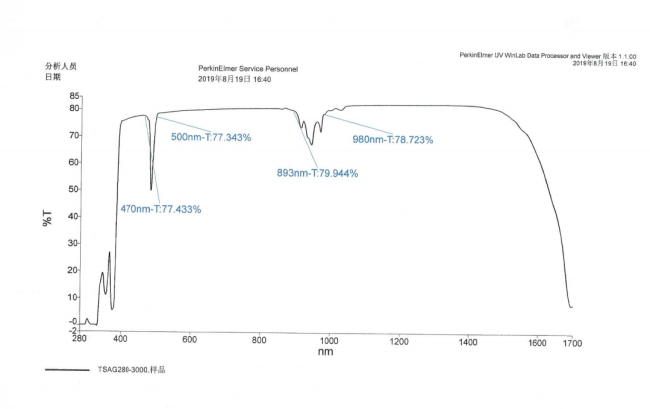

TSAG Transmission Curve :
Crystro offers :
| Property | Value |
|---|---|
| Orientation | ±15′ |
| Wavefront Distortion | ＜λ/8 |
| Extinction Ratio | ＞30dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | ＜0.1mm @ 45° |
| Flatness | ＜λ/10 at 633nm |
| Parallelism | ＜3′ |
| Perpendicularity | ＜5′ |
| Surface Quality | 10/5 |
| AR coating | ＜0.3% @ 1064nm |

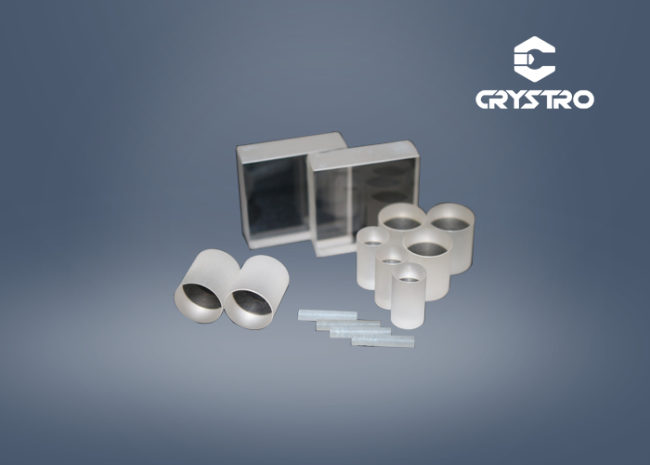

Product Details :
