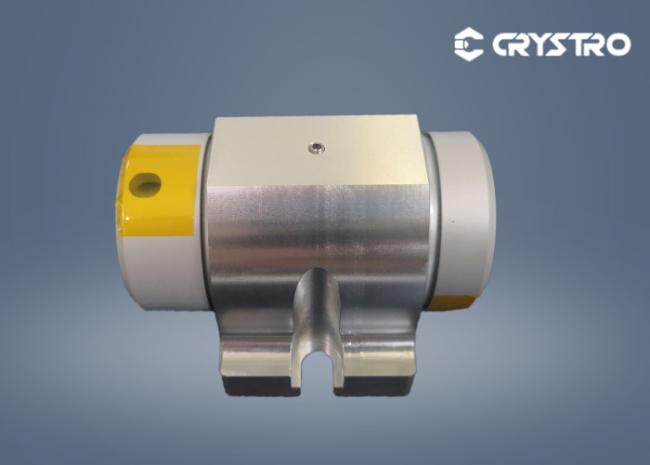

Crystro 5mm Faraday Free Space Faraday Optical Isolator
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
6-8 weeks
Brand:
Crystro
Product Description
Clear Aperture 5mm High Reliability And Stability Crystro Faraday Free Space Isolator
An optical isolator is a passive magneto-optic device based on the Faraday effect. It is an optical component that allows the transmission of light in only one direction and prevents unwanted feedback into an optical oscillator. Crystro offers isolators that are based on our own TGG or TSAG Faraday crystals of low loss and high optical power threshold.
Specifications:
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
Features:
-
Superior Performance and Reliability
-
High Isolation / Low Insertion Loss
-
Low, Medium, and High Power Options
-
High Power Models with Exit Ports for
Return Signal Monitoring or Beam Injection -
User Tunable or Fixed Wavelength
-
Wide Tuning Range
-
Broadband Optical Isolator Models
