Gadolinium Gallium Garnet Boubles Optical Substrate SGGG Crystal
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description

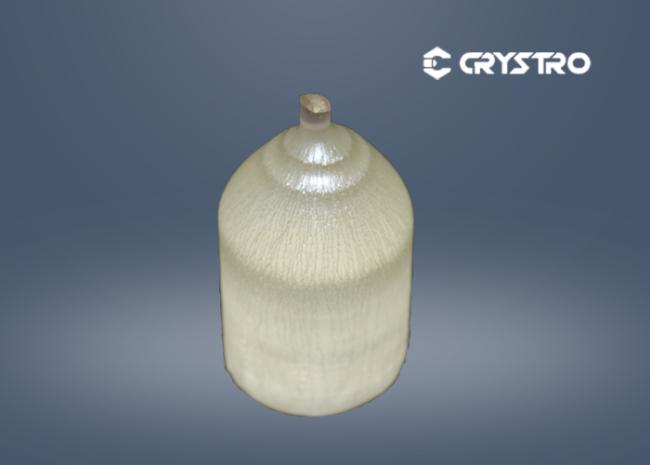

Gadolinium Gallium Garnet Bouble Optical Substrate SGGG Crystal
Introduction :
Substituted gadolinium gallium garnet (SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films.GGG, SGGG, and NGG Garnets are used as substrates for liquid epitaxy.
Main Properties:
| Name | Substituted GGG |
| Crystal Structure | Cubic |
| Lattic Parameter | a=12.497Å |
| Growth Method | Czochralski |
| Density | 7.09g/cm3 |
| Mohs Hardness | 7.5 |
| Melting Point | 1730℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO Offers:
| SIze | MAX Dia 4 inches |
| Thickness | 0.5mm/ 1mm |
| Polishing | Single or Double side |
| Orientation | <111>±0.2° |
| Edge Orientation accuracy | 2°(special in 1°) |
| Cutting | Special size and orientation are available upon request |
| Ra | ≤1nm |
| Package |
100 clean bag,1000 exactly clean bag
|
