Aperture 12mm 1064nm Faraday Free Space Optical Isolator
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
4 weeks
Brand:
Crystro
Product Description

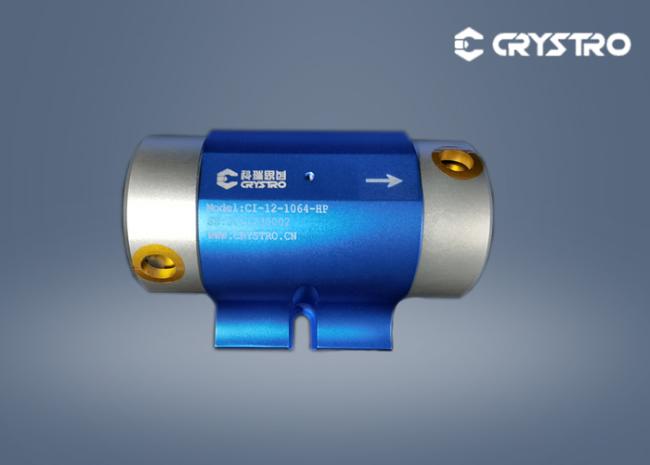

Clear Aperture 12mm Center Wavelength 1064nm Free-Space Optical Isolator
An optical isolator is a passive device that allows light to pass in one direction but prevents it from passing in the opposite direction. The function is to limit the direction of the light so that the light can only be transmitted in a single direction, and the light reflected by the optical fiber echo can be well isolated by the optical isolator, which improves the efficiency of lightwave transmission.
Specifications:
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
Applications :
● Fiber transmittance amplifiers
● Laser sensing system
● Ultrafast laser system
● Laser detection
● Laser precision machining
Product details :
