Electro Optical Langasite LGS Lanthanum Gallium Silicate Crystal
Good Electro-Optical Properties Langasite LGS (La3Ga5SiO14) Crystal
Introduction :
Lanthanum gallium silicate crystal has excellent physical and chemical properties and has optical and electro-optical properties. It is a new type of optical-electro-optical Q-switch material. Lanthanum gallium silicate (LGS) has good electro-optical properties, the half-wave voltage can be adjusted with the aspect ratio, its optical damage threshold is high, the optical rotation is small, moderate hardness and good mechanical properties and chemical stability are excellent Electro-optic crystal.
Main Properties:
| Crystal Structure | regional system, group 33 a= 8.1783 c = 5.1014 |
| Growth Method | Czochralski |
| Hardness | 6.6 Moh's |
| Density | 5.754 g/cm3 |
| Melt Point | 1470 o C ( phase transition point: N/A) |
| Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
| Acoustic velocity, SAW | 2400 ( m/sec ) |
| Frequency constant, BAW | 1380 ( kHz/mm ) |
| Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
| Inclusions | N0 |

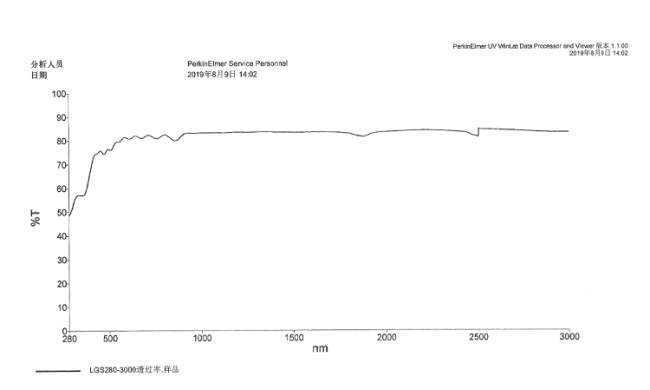

LGS Transmission Curve :
Main Application :
-
electro-optic Q-switch
-
SAW device
-
BAW device
-
Sensor
-
High power high repetition rate all-solid-state laser
-
High and low temperature change the laser
Product Details :
