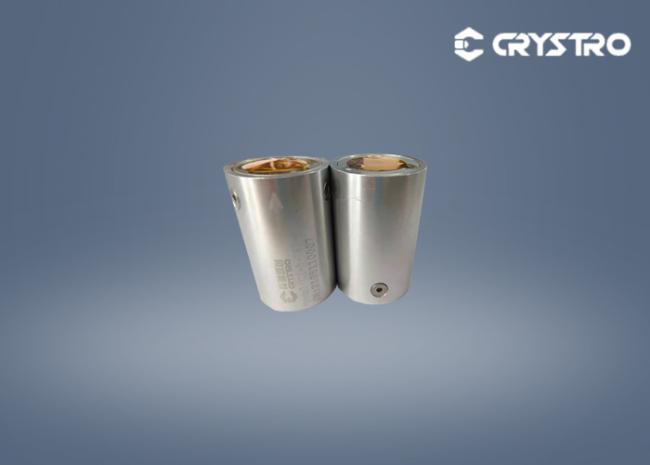

Crystro Clear Aperture 5mm Free Space Isolator
Crystro Clear Aperture 5mm Free-Space Isolator
An optical isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction. Its function is to limit the direction of light, so that light can only be transmitted in one direction, and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of lightwave transmission.
The free space type isolator can be divided into two categories: polarization-dependent type and polarization-independent type.
Advantages :
Crystro's own magneto-optic crystal TGG, TSAG has the characteristics of high extinction ratio, low absorption, low loss, etc. It is used in an optical isolator to achieve reliable isolation and stable performance.
Specifications:
| Model No. | CI-5-780-HP |
| Center Wavelength | 780 nm |
| Operating Wavelength Range | ±10nm |
| Peak Transmission | >93% |
| Peak Isolation | ≥ 35dB |
| M2 Degradation | <10% |
| Clear Aperture | 5 mm |
| Optical Power(Average) | 20,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
Product details :
