Industrial Kilns 1650C Molybdenum Disilicide Electric Heating Element Hot End Inclined 45 Degrees

MoSi2 element for industrial kilns (1650 ℃), molybdenum disilicide electric heating element, hot end inclined 45 degrees

Introduction of molybdenum disilicide electric heating element

Molybdenum disilicide electric heating element is the main heating element of industrial high temperature electric kiln. Combined with the power distribution system, the maximum temperature can reach 1730 ℃.

Physical Properties of Moly Disilicide Heating Elements

Max temperatures of Moly Disilicide Heating Elements in Different Atmospheres

Advantages of molybdenum disilicide electric heating element:

In the process of use, the silicon molybdenum rod has the effects of low thermal conductivity, high temperature resistance, high energy saving rate and green environmental protection.

1. Low thermal conductivity: the thermal conductivity of silicon molybdenum rod electric heating element shall not be higher than 0.06w/m. K. The thermal conductivity of silicon molybdenum rod is only 0.03w/m. K, which is ten times lower than that of traditional high-temperature materials,

2. The inhibition efficiency of thermal insulation can reach about 90%.

3. High temperature resistance: the high temperature resistance of silicon molybdenum rod can reach 1800 ℃, far exceeding other heat-resistant materials.

4. High energy saving rate: the silicon molybdenum rod has a long service life, which is more than 30% more than the efficiency of traditional coal combustion, and its service life is also unmatched by coal.

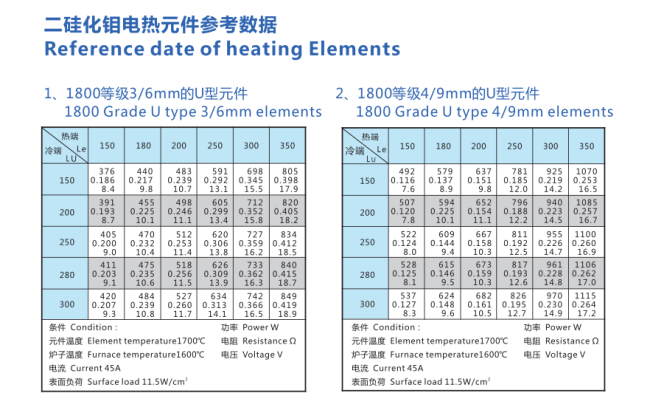

Reference data of molybdenum disilicide electric heating element
