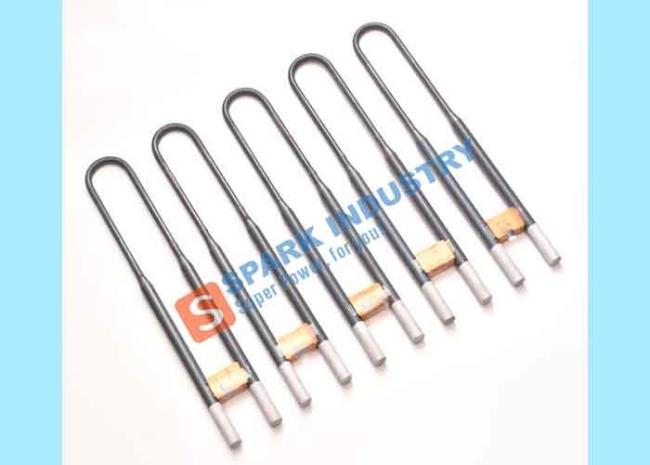

1800 C MoSi2 Heating Elements For Gem Stone Heat Treatment Furnaces And Kilns

1800℃ MoSi2 Heating Elements For Gem Stone Heat Treatment Furnaces And Kilns

Advantages

1. High purity raw materials;

2. High structural density;

3. Slow aging;

4. Maximum temperature being up to 1850℃ ;

5. Easy to be installed and replaced.

Chemistry Character
MoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.

Following should be provided when ordering U Type MoSi2 Heating Elements:

1.Grade: 1700, 1800 or 1900

2. Diameter: D1/D2, in/in or mm/mm

3. Heated Length: Le*, in. or mm

4. Terminal length: Lu*, in. or mm

5. Shank Spacing: A*, in. or mm

6. Specify Le, Lu and A with the same units (e.g. all as in. or mm).

Examples:

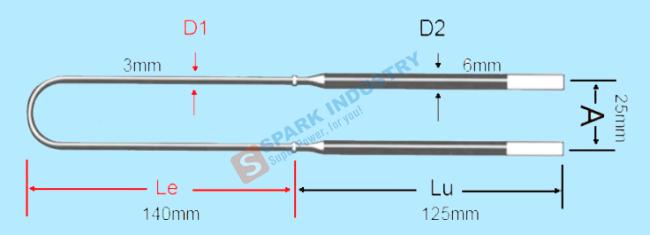

U-Shape, Material Grade 1800, D1=3mm, D2=6mm, Le=140mm, Lu=125mm, A=25mm

Specify as: MS18U, 3/6 x 140 x 125 x 25

ELEMENT TEMPERATURES IN VARIOUS ATMOSPHERES, ºC (ºF)

Note: For inquiry, it is better to provide a drawing of the element and specify the element diameters in millimeters. For example, an element with a (D₁) diameter of 9 mm and a (D₂) diameter of 18 mm is often referred to as a 9/18 element.
