High 95% Purity Zirconia Alumina Ceramic Plates Sheets Wear Resistant Substrate
High-95%-99.99% Purity Alumina Ceramic Plates Wear-Resistant Zirconia Ceramic Sheets Corrosion-Resistant Ceramic Substra

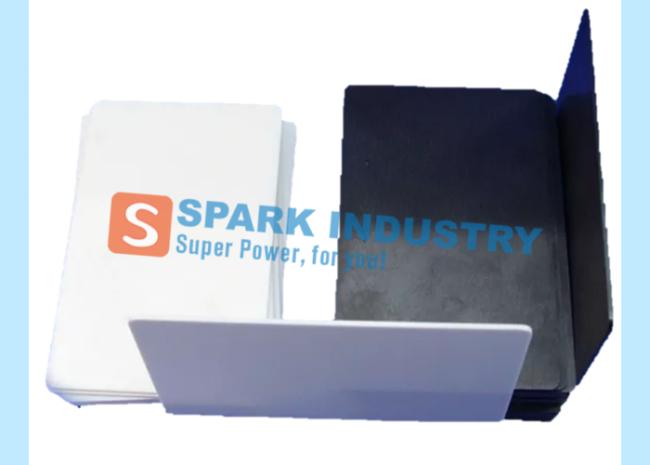

We have a multi sizes of the ceramic plate sheets in stock, and we also can support to custom the ceramic plates for other sizes.
Our ceramic plate sheet substrate disc made by advance ceramic like 95%-99.99% aluminium oxide ceramics, zircomium oxide ceramic etc which have high temperature resisting, corrosion resistance, chemical resisting, thermal conducitity, insulating etc best performance.
| The best-selling sizes are as follows in stock: Ceramic plates sheet substrate disc series: |
| Length | Width | Thickness | Price |
| 220mm (8.66in) | 220mm (8.66in) | 5mm (0.2in) | Get the latest price |
| 216mm (8.5in) | 102mm (4.01in) | 5mm (0.2in) | Get the latest price |
| 208mm (8.19in) | 110mm (4.33in) | 5mm (0.2in) | Get the latest price |
| 152mm (6in) | 152mm (6in) | 5mm (0.2in) | Get the latest price |
| 150mm (5.91in) | 80mm (3.15in) | 4mm (0.16in) | Get the latest price |
| 107mm (4.21in) | 53mm (2.09in) | 4mm (0.16in) | Get the latest price |
| 102mm (4in) | 76mm (3in) | 6mm (0.24in) | Get the latest price |
| 102mm (4in) | 25mm (0.98in) | 1mm (0.04in) | Get the latest price |
| 90mm (3.54in) | 65mm (2.56in) | 6mm (0.24in) | Get the latest price |
| 90mm (3.54in) | 45mm (1.77in) | 4mm (0.16in) | Get the latest price |
| 60mm(2.36in) | 40mm (1.57in) | 1mm (0.04in) | Get the latest price |
Applications of alumina ceramic plates:
•Alumina substrates plates are hard enough to become armor for personnel or vehicles.
• The corrosion resistivity of alumina plates makes them a great material for chemical industry.
• Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures.
• Used for making parts for CVD, ion implants, photolithography, and semiconductor parts.
• In traditional industries, alumina ceramics are ideal for products such as injector tubes, gas nozzles and insulators.
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | SiC | Si3N4 | |
| Physical properties | |||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,2 | 3,27 |
| Molecular weight (g/mole) | 102 | - | - | 40,1 | 140 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 1500 | 1200- 1500 |
| Mechanical properties | |||||
| Hardness (Mohs) | 9 | - | - | 9 | - |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 420 | 170-220 |
| Poisson's ratio | 0,25 | - | - | 0,14 | 0,25-0,26 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | 2,5-3,5 | 3,5-5 |
| Electrical properties | |||||
| Dielectric constant | 9-10 | - | - | - | 10 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | 10 2-10 6 | >10 7 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - |
| Thermal properties | |||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 750 | 690 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 63-155 | 9-30 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 4-5 | 3 |
| Melting point (°C) | 2050 | 2590 | - | 2500 | 1900 |
