China Industrial Kiln Resistance Furnace Heat Treatment 1200C Ceramic Sintering for sale

Industrial Kiln Resistance Furnace Heat Treatment 1200C Ceramic Sintering

Price Negotiable

Price: Neogitable

MOQ: 1Pcs

Delivery Time: 10-30days

Brand: Spark

Product Description

Kiln Resistance Furnace Industrial Heat Treatment 1200C High Temperature Ceramic Sintering Furnace

1700°C industrial furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.

Model	STD-64-17	STD-96-17	STD-150-17	STD-288-17
Chamber Size mm(WDH)	400x400x400	400x600x400	450x530x590	600x800x600
Power supply	380V/18KW	380V/25KW	380V/30KW	380V/50KW
Type	Benchtop Front-loading
Usage	General purpose furnace ideal for general laboratory uses—gravimetric analysis, sintering, quantitative analysis and heat treatment
Furnace structure	Hot Sale Lab Equipment High Temperature Industry Ceramic Chamber Muffle Furnace kiln 1. The furnace is consist of heating system, gas system, vacuum system 2. chamber is consist of insulation material and heating elements and atmosphere boxes 3. Temperature controller is consist of PID temp. controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Rated Max. temperature	500℃	1700℃
Continuous Working temperature	500℃	1600℃
Heating Rate	≤15℃/min (suggest 10℃/min for longer life using of furnace)
Heating Element	With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system

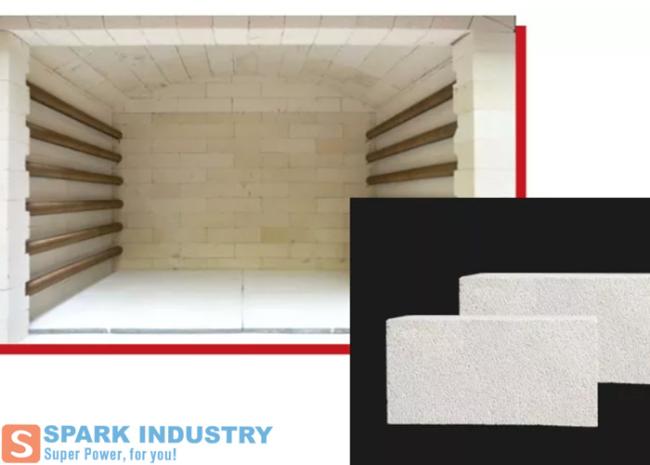

Chamber material	1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1800 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes 4. Vertical heating elements evenly distributes on two sides of the chamber which give an ideal temperature uniformity
Temp. Uniformity	±5°C
Thermocouple	B type
Temperature Controller	1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes Inteligient PID 32 segments programs 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1℃
Electronic component	SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Supply Scope	1. One furnace body 2. One set of temperature controller system 3. Three-meter power line 4. One thermocouple 5. One pair of crucible stongs 6. One pair of high temperature furnace gloves 7. An instruction book
Optional Accessories	1. Alumina crucibles 2. paperless recorder 3. exhaust chimney
Certification	ISO9001 CE SGS
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively
