1400C High Temperature Vacuum Furnace Electric Annealing Atmosphere Controlled

Price Negotiable
Price: Neogitable
MOQ: 1Pcs
Delivery Time: 10-30days
Brand: Spark
Product Description

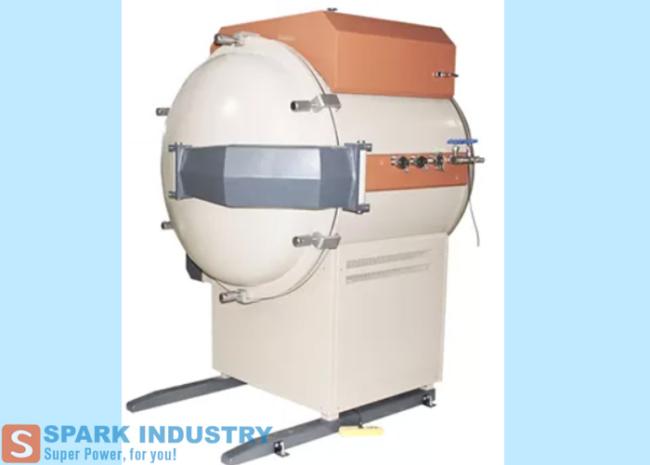

High Temperature 1400C Electric Annealing Atmosphere Controlled Vacuum Furnace
Specification
ZK1700X
Small
Medium
Large
Voltage
AC 380V 50/60Hz
Temperature Accuracy
+/- 1 °C
Max temperature
1650°C (Other temperature can contact us)
Continuous working temperature
1600°C (Other temperature can contact us)
Max Pressure
0.5MPa
Vacuum Level
20Pa
Heating Element
Mosi2 Heater
Power
15 KW
28 KW
60 KW
hearth volume
(400x300x300)mm
36L
(500x500x500)mm
125L
(610x610x610)mm
227L
The above specifications are for reference only, please contact us for your special requirements, our professional technical team will give you a satisfactory solution
Product Description

Feature:

1. The furnace adopts alumina polycrystalline fiber
2. Heating on both sides (left, right)
3. Using high-purity mosi2 heater rod
4.B-type double platinum-rhodium thermocouple for temperature measurement
5. Double-layer shell structure, with air cooling, the shell surface temperature is less than 60C during operation
