Heating Element Of Silicon Carbide Heating Rod Smelting Furnace
Heating Element Of Silicon Carbide Heating Rod Smelting Furnace

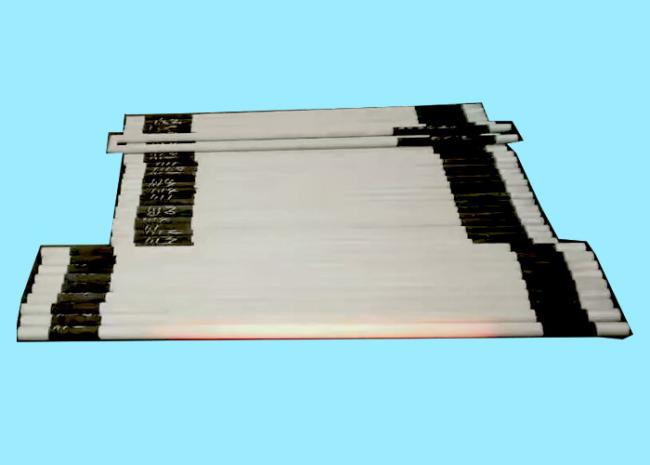

Silicon Carbide Heating Rod types
1) Main type :ED (straight ) ,DB (thin and thick ),SC(single thread),SCR(double thread ),U,W,UX .
2) We can provide the dimension as per your requirement .
Some specific:
Low expansion coefficient ,little deformation,stable chemical property, long service life ,easy installation and maintenance.
Silicon Carbide Heating Rod application :
It is extensively used in the fields of metallurgy ,ceramics, glass ,machinery,analysis test semiconductor science and research
Silicon Carbide Heating Rod Parameters
|
Outer Diameter (OD, mm) |
Hot zone (HZ, mm) |
Cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
FAQ
1. Is your company accepting customization?
We have own factory and excellent technical team, and we accept OEM service.
2. Shall you offer samples?
Yes, we can offer the client samples in stock.
3. How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
4. What is the delivery time?
15-25 days after receiving deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delievey time is about 10-25days.
