Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hot Zone
Price:
Negotiable
MOQ:
10Pcs
Delivery Time:
10-30 Days
Brand:
SPARK
Product Description

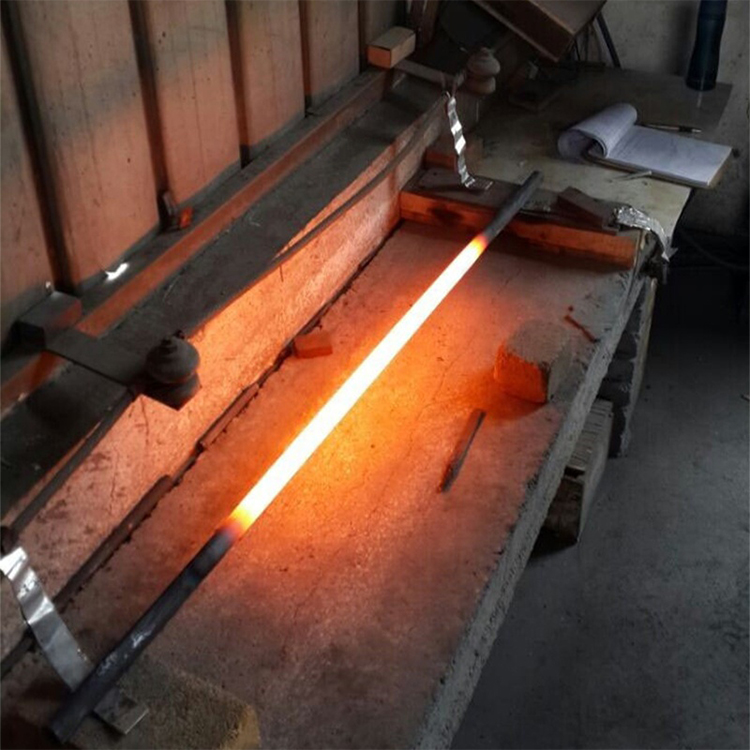

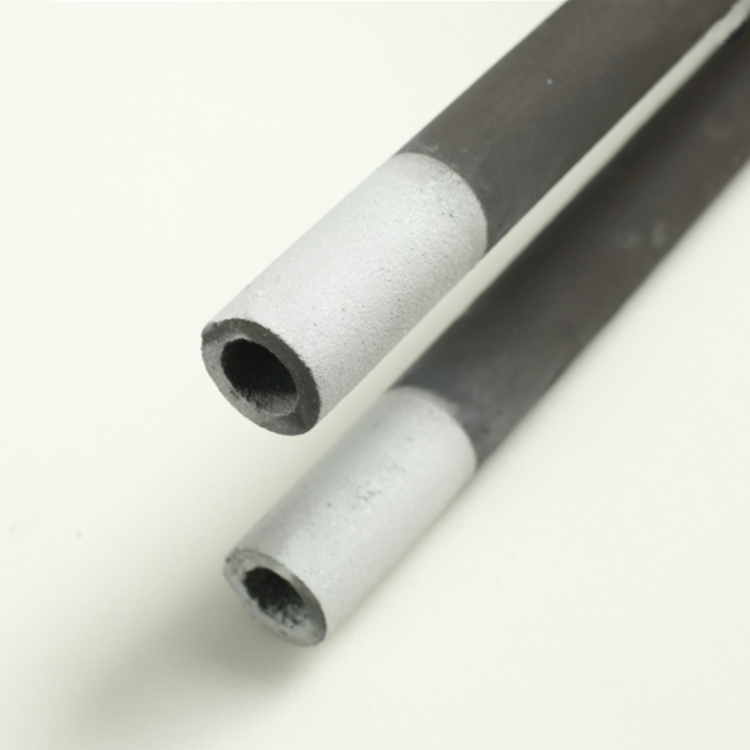

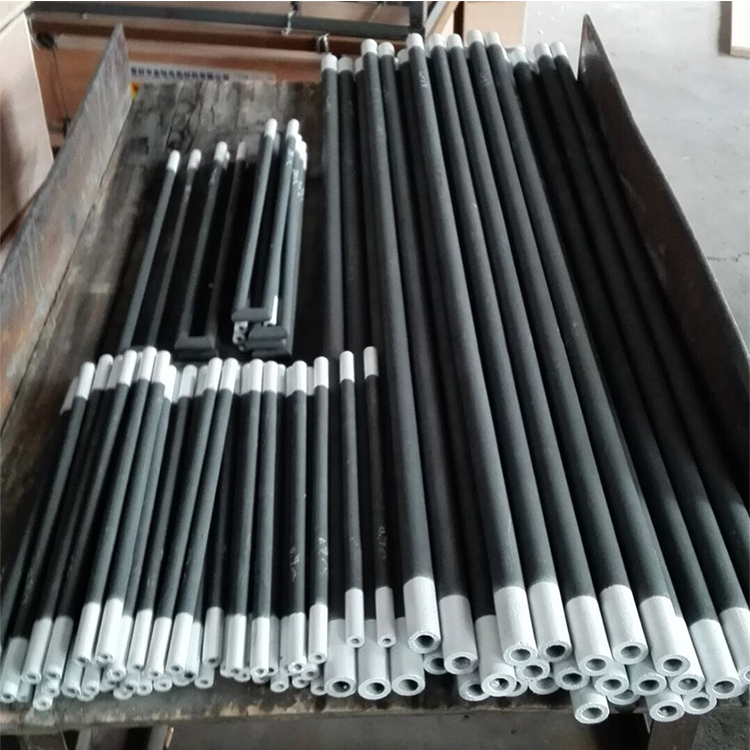

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hot Zone
FEATURES
¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- 1. Withstands as high as 1500 (surface temperature).
- 2. Generates high heat output per unit surface area, approximately 5-10 times the output of Nichrome wire.
- 3. High strength and excellent shock resistance.
- 4. Heat source is free of noise and air pollution.
| Item | RSiC | NSiC | SiSiC | Si3N4-SiC |
| Bulk Density(g/cm3) | 2.60-2.74 | 2.75-2.82 | >3.02 | 2.68 |
| Porosity (%) | 15 | 10-12 | <0.1 | <16 |
| Compression Strength(MPa) | ≥600 | 600-700 | -- | 180 |
| Bending Strength(MPa) | 90-100(20℃) | -- | 250(20℃) | ≥45(20℃) |
| 100-120(1100℃) | 160-180(1100℃) | 280(1200℃) | ≥50(1200℃) | |
| Young’s Modulus(GPa) | 280(20℃) | 220-260 | -- | ≥16(1200℃) |
| Thermal Conductivity(W/MK) | 26(1200℃) | 15(1200℃) | 45(1200℃) | -- |
| Thermal Expansion(20-1000 ℃) | 4.8×10-6 | 5.099×10-6 | 4.5×10-6 | ≤4.7×10-6 |
| Max. Working Temperature(℃) | 1650 | 1500 | 1380 | 1500 |
| PH Resistance | 1-14 | -- | Excellent | -- |
| Moh’s Scale of Thermal Expansion | -- | -- | 13 | -- |
| Si3N4 (%) | 0 | 20-40 | -- | ≥22 |
| a-SiC(%) | 98.5 | 60-80 | -- | ≥75 |
