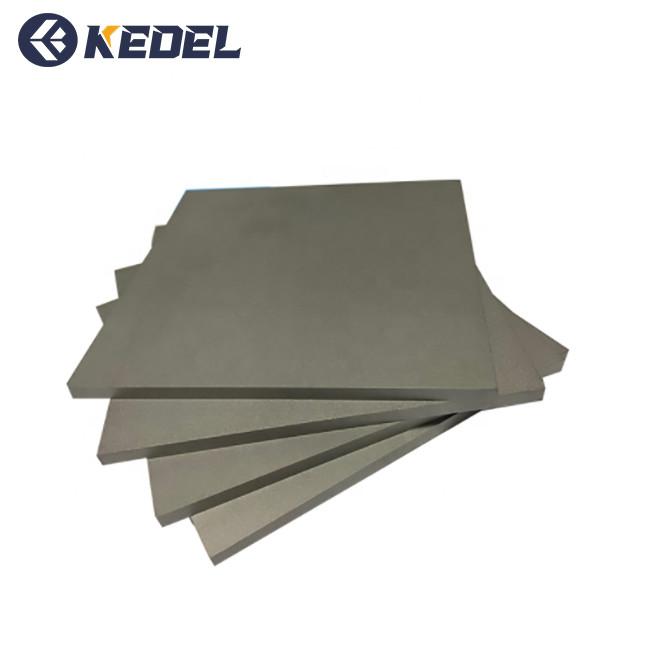

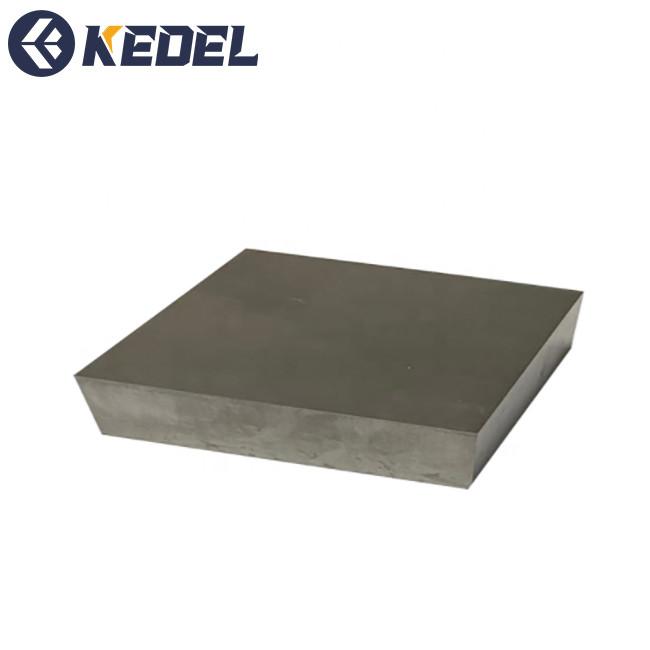

K10 K20 Tungsten Carbide Plate HRA90-92.1 for Metal Working
- High stability and long service life
- Customizable to your specific requirements
- Approved supplier for TOP5 clients in oil and gas industry
- Certified with ASP9100 and ISO9001:2015
- Specialized threading workshop available
Our tungsten carbide sheets are primarily used for processing copper sheets, stainless steel, SPCC, and silicon steel sheets. They are also ideal for compression molding of electronic connectors, LED lead frames, and motor rotors.
- 125x65xT1.5-15 mm
- 105x105xT6.0-70 mm
- 150x150xT20-70 mm
- 205x205xT15-45 mm
- 255x255xT15-35 mm
- 300x300xT15-30 mm
We also offer sheets in various other sizes (50x50xT, 100x100xT, 120x120xT, etc.) and can manufacture custom sizes ranging from 1-300 mm wide x 1-300 mm deep x 1-300 mm thick.
Commonly used grades include YG8, YG15, YG20, YG10.2, YG2T, and YG10X. Other grades are available upon request.
| Grade | ISO Grade | Cobalt | Density | HRA | TRS | Grain Size | Application |
|---|---|---|---|---|---|---|---|
| YG6 | K10 | 6% | 14.9g/cm3 | 90.5 | 2000 | Medium | Machining general wood and soft materials |
| YG8 | K30 | 8% | 14.76g/cm3 | 90.0 | 2200 | Medium | Soft wood and hardwood |
| UF07H | K05 | 7% | 14.7g/cm3 | 92.9 | 3000 | Submicron | Cutting MDF, HDF and plywood board |
| UF16H | K20 | 8% | 14.76g/cm3 | 91.2 | 2500 | Fine | Machining fiber board and hardwood |
| UF18H | K20 | 10% | 14.5g/cm3 | 91.8 | 3200 | Submicron | Machining hardwood |
We are a manufacturer.
Yes, we often make customized products.
We can provide free samples, but do not pay freight cost.
Generally 1-5 days if we have stock, 30 days if the product is customized.
