K10 K20 K30 Tungsten Carbide Strips HRA90-92.1 for Woodworking
K10 K20 K30 HIP Sintered Tungsten Carbide Flat Bars/Carbide Plates/Carbide Strips for wood working applications.
Tungsten carbide strip is a powdered sintered metallurgical product manufactured in a vacuum or hydrogen reduction furnace. It features refractory tungsten material (WC) micron powder as the main component, with cobalt (Co), nickel (Ni) or molybdenum (Mo) as the binder. This material offers exceptional properties including:
- High hardness and strength
- Excellent wear and corrosion resistance
- Remarkable stability at high temperatures (maintains properties at 500°C, retains hardness at 1000°C)
We offer several types of tungsten carbide strips: angled strip, round strip, and standard carbide strip.
- Production of cast iron rolls and high chromium roll cutters
- Electronic stamping dies including discharge plates, stamping dies, and cold stamping dies
- High-speed molds for copper, aluminum, stainless steel, cold-rolled sheet, and other metals
- Processing hardwood, logs, aluminum, copper rods, and cast iron
- Production of various motors and electronic molds
| Grade | Grain Size | Cementing Phase/% | Density g/cm3 | Hardness/HRA | T.R.S/.N/mm2 | Performances & Recommended Applications |
|---|---|---|---|---|---|---|
| YG11 | 1.6-2.4 | 11 | 14.45 | 88.0 | 3200 | Production of precision punch die, suitable for copper and aluminum material stamping |
| YG15 | 1.6-2.4 | 15 | 14.05 | 87.0 | 3300 | Production of electrical machinery, electronic progressive die, punch, good versatility |
| BZ30 | 1.6-2.4 | 15 | 14.10 | 87.2 | 3400 | Production of electrical machinery, electronic progressive die, punch |
| YG20 | 1.6-2.4 | 20 | 13.55 | 85.0 | 3400 | Production of large impact load motor type progressive die, punch |

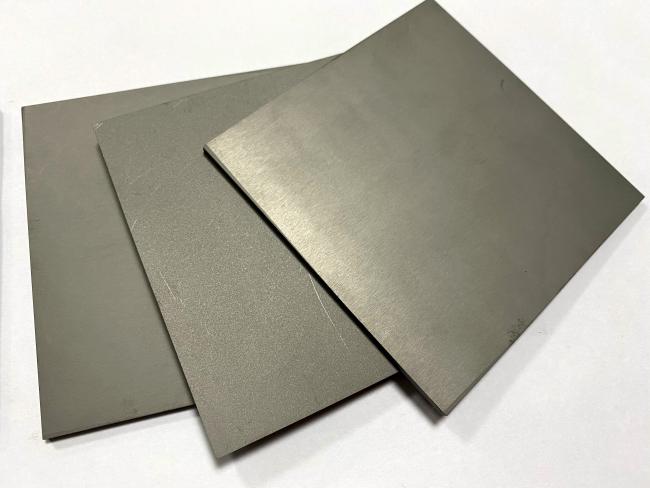

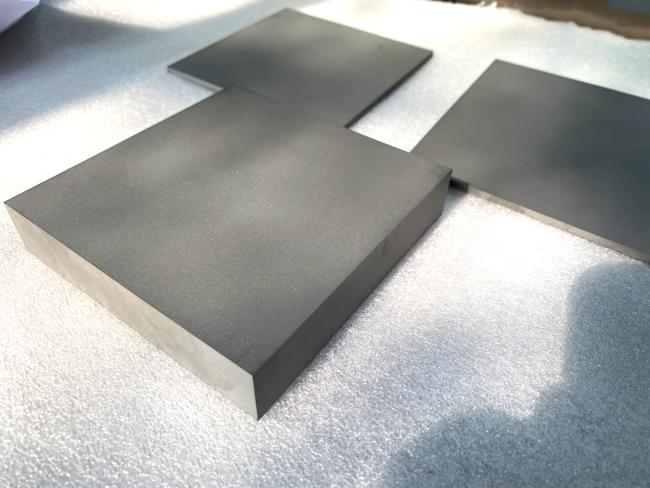

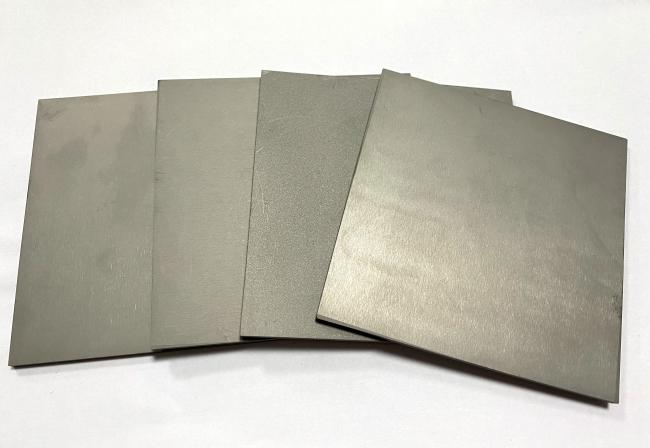

Wear parts hard alloy cemented tungsten carbide board block bar plates:

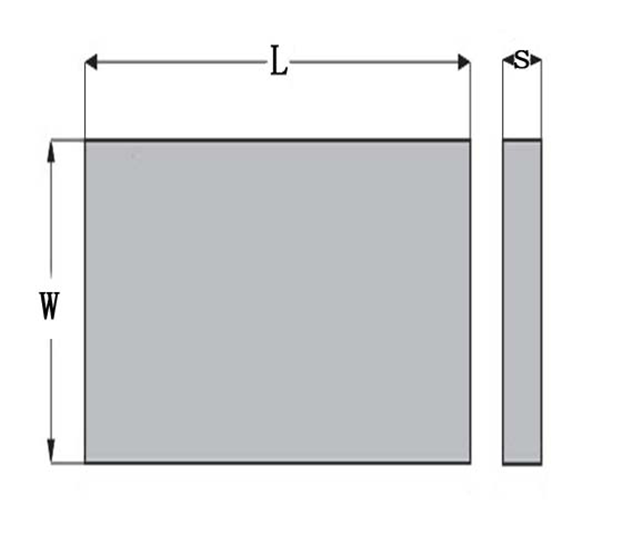

| L (mm) | W (mm) | S (mm) |
|---|---|---|
| 200 | 200 | 10-45 |
| 150 | 150 | 10-45 |
| 150 | 130 | 10-45 |
| 150 | 100 | 10-45 |
| 150 | 80 | 10-45 |
| 120 | 120 | 10-45 |
| 100 | 100 | 10-50 |
| 100 | 50 | 10-50 |
| 100 | 45 | 10-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-40 |
| 70 | 35 | 5-40 |
| 45 | 25 | 5-20 |
| 35 | 19 | 5-20 |
| 20 | 20 | 5-20 |
| 18 | 13 | 5-20 |
All products undergo strict ultrasonic inspection to ensure they are free from defects such as pores before shipping. These high-density materials offer exceptional wear and impact resistance, resulting in extended service life.
Packing Details: Carbide oil spray nozzles are packed with plastic foam, solid plastic box, and carton.
Payment Methods: L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.
Packing Details: Packing PDC carbide cylinder nozzle, use plastic foam, solid plastic box and carton.
