YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Price:
$5.0 - $35.0 / Piece
MOQ:
20 Piece/Pieces
Delivery Time:
Negotiable
Brand:
Kedel
Product Description
Blanks Tungsten Carbide Valve YG6 Grade Anti Corrosion
Product Description

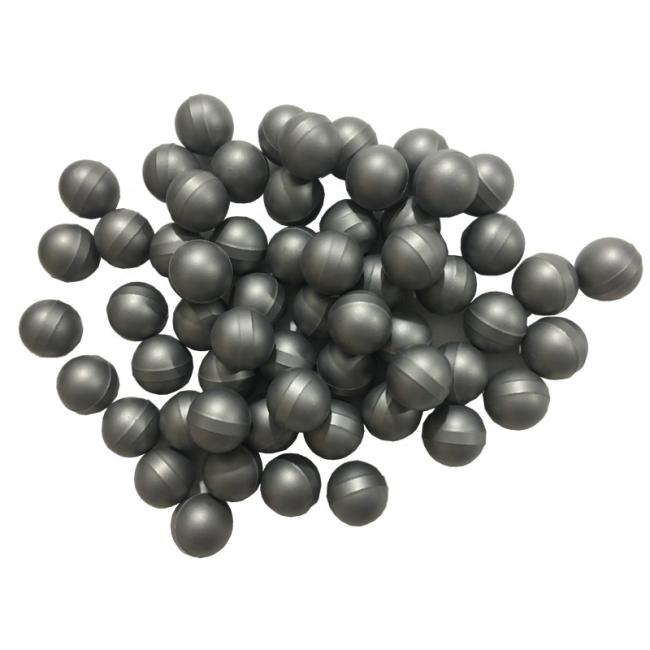

Tungsten carbide ball/TC alloy ball
High precision tungsten carbide balls/Tungsten alloy ball
Tungsten Carbide ball is mainly composed of high-hardness refractory metal carbide (WC, TiC) micron powder with cobalt (Co) or nickel (Ni), molybdenum (Mo) as binder in vacuum furnace or Sintered powder metallurgy products in hydrogen reduction furnace, nowadays common cemented carbides have YG, YN.
| Product name | Tungsten carbide ball |
|---|---|
| Series | YG6 YG8 YN6 YN13 YT15 |
| Feature | Large hard Tungsten Carbide ball has high hardness, wear resistance, corrosion resistance, bending resistance, and bad use environment, and can replace all steel ball products. Carbide ball hardness ≥ 90.5, density = 14.9g/cm3. |
| Density | 14.9g/cm3. |
| Product process line | The production process of cemented carbide ball is similar to that of other cemented carbide products, mainly including powder preparation → recipe according to application → wet grinding → mixing → crushing → drying → sieving → adding molding agent → drying → sieving Prepared mix → granulation → cold isostatic pressing → forming → sintering → forming (blank) → packaging → storage. |

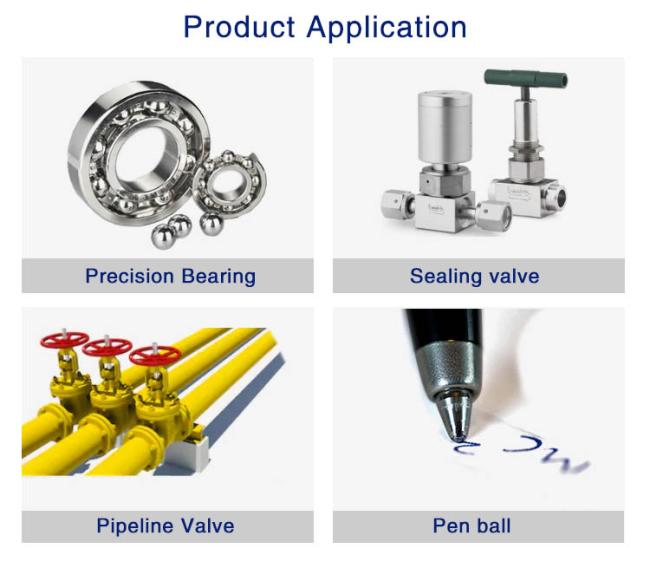

Applications
Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion; and are able to withstand hard shocks and impacts. Tungsten carbide balls are made with 6% nickel binder or 9% nickel binder.
- Ball valves
- Flow meters
- Ball bearings
- Linear bearings
- Tungsten carbide grinding balls
- Ball screws
Product Parameters
| Grade | WC% | CO% | Hardness (HRA) | Density (G/M³) | T.R.S (Mpa) | Application |
|---|---|---|---|---|---|---|
| YG6 | 94% | 6% | 91 | 14.6-15.0 | 1700 | Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement. |
| YG6X | 94% | 6% | 92 | 14.6-15.0 | 1450 | Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement. |
| YG8 | 92% | 8% | 89 | 14.4-14.8 | 1800 | Widely used in valves, bearing, die casting, punching, grinding measurement, hardness tester, petroleum, chemical industry, aeronautics and astronautics. |
Production Facility
Quality Control
Product Exhibition
Exhibition Showcase
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
