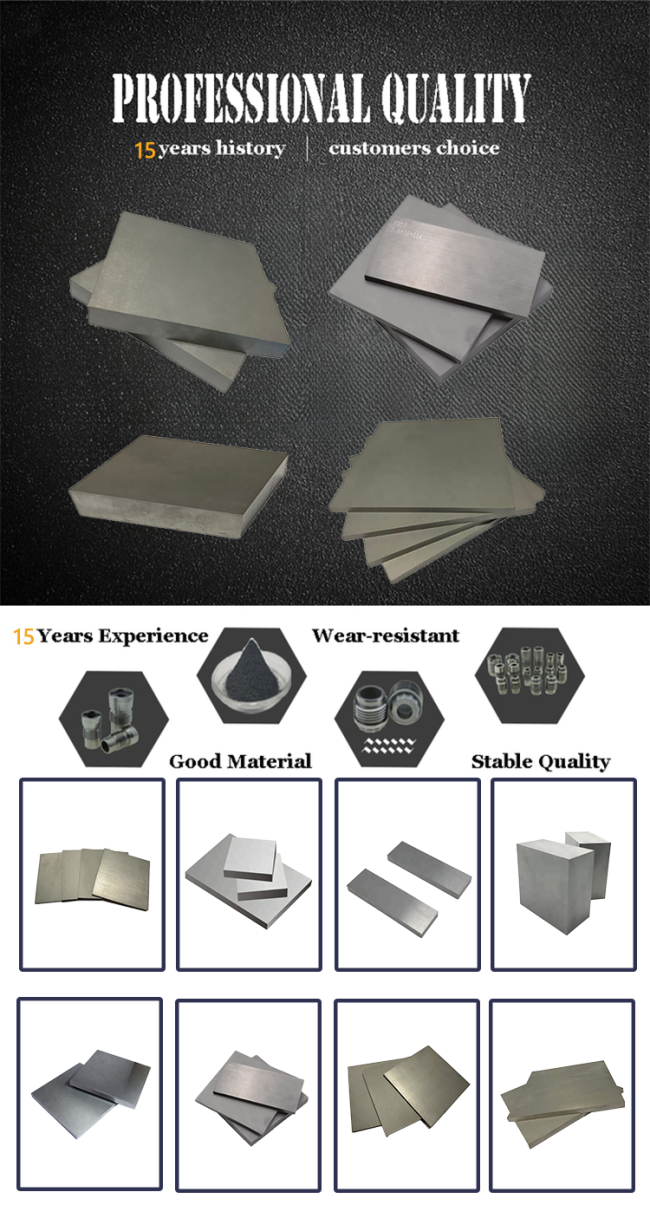

Customized Size YG11C Alloy Tungsten Carbide Plate with Glossy Surface for High Wear Resistance and Corrosion Resistance
| Grade | Composition (% in weight) | WC | Ni | Ti | TaC | Density g/cm³ (±0.1) | Hardness HRA (±0.5) | TRS Mpa (min) | Porosity A/B/C | Grain size (μm) |
|---|---|---|---|---|---|---|---|---|---|---|
| KD115/YG6X | 93.5 | 6.0 | - | 0.5 | 14.90 | 93.0 | 2700 | A02/B00/C00 | 0.6-0.8 | |
| KD335/YG10X | 89.0 | 10.5 | - | 0.5 | 14.40 | 91.8 | 3800 | A02/B00/C00 | 0.6-0.8 | |
| KG6/YG6 | 94.0 | 6.0 | - | - | 14.90 | 90.5 | 2500 | A02/B00/C00 | 1.2-1.6 | |
| KG8/YG8 | 92.0 | 8.0 | - | - | 14.75 | 90.0 | 3200 | A02/B00/C00 | 1.2-1.6 | |
| KG9/YG9 | 91.0 | 9.0 | - | - | 14.60 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 | |
| KG9C/YG9C | 91.0 | 9.0 | - | - | 14.60 | 88.0 | 3200 | A02/B00/C00 | 1.6-2.4 | |
| KG10/KG10 | 90.0 | 10.0 | - | - | 14.50 | 88.5 | 3200 | A02/B00/C00 | 1.2-1.6 | |
| KG11/YG11 | 89.0 | 11.0 | - | - | 14.35 | 89.0 | 3200 | A02/B00/C00 | 1.2-1.6 | |
| KG11C/YG11C | 89.0 | 11.0 | - | - | 14.40 | 87.5 | 3000 | A02/B00/C00 | 1.6-2.4 | |
| KG13/YG13 | 87.0 | 13.0 | - | - | 14.20 | 88.7 | 3500 | A02/B00/C00 | 1.2-1.6 | |
| KG13C/YG13C | 87.0 | 13.0 | - | - | 14.20 | 87.0 | 3500 | A02/B00/C00 | 1.6-2.4 | |
| KG15/YG15 | 85.0 | 15.0 | - | - | 14.10 | 87.5 | 3500 | A02/B00/C00 | 1.2-1.6 | |
| KG15C/YG15C | 85.0 | 15.0 | - | - | 14.00 | 86.5 | 3500 | A02/B00/C00 | 1.6-2.4 | |
| KD118/YG8X | 91.5 | 8.5 | - | - | 14.50 | 93.6 | 3800 | A02/B00/C00 | 0.4-0.6 | |
| KD338/YG12X | 88.0 | 12.0 | - | - | 14.10 | 92.8 | 2200 | A02/B00/C00 | 0.4-0.6 | |
| KD25/P25 | 77.4 | 8.5 | 6.5 | 6.0 | 12.60 | 91.8 | 2200 | A02/B00/C00 | 1.0-1.6 | |
| KD35/P35 | 69.2 | 10.5 | 5.2 | 13.8 | 12.70 | 91.1 | 2500 | A02/B00/C00 | 1.0-1.6 | |
| KD10/M10 | 83.4 | 7.0 | 4.5 | 4.0 | 13.25 | 93.0 | 2000 | A02/B00/C00 | 0.8-1.2 | |
| KD20/M20 | 79.0 | 8.0 | 7.4 | 3.8 | 12.33 | 92.1 | 2200 | A02/B00/C00 | 0.8-1.2 |
FAQ
Q How to obtain an accurate quotation from Kedel Tools?
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
Q How does our company ensure the quality of its products?
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q How long does a typical production cycle take?
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q What is our company's payment method?
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
