65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design
Single-tooth CNC end mill for threading, suitable for M2, M3, M4, and M6 applications.
| Parameter | Value |
|---|---|
| Flutes | 4 |
| Chip Flute | 4 |
| Coating | Balzers |
| Shape | Full-thread |
| Angle | 35° |
| HRC | 65° |

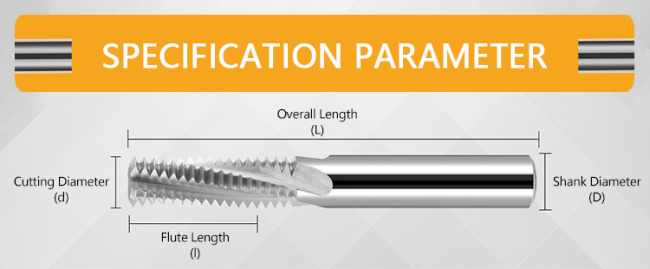

| Number of Flutes | Pitch (mm) | Cutting Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) |
|---|---|---|---|---|---|
| Three blades | M3*0.5 | D2.3 | 6 | D4 | 50 |
| M6*0.5 | D4 | 10 | D4 | 50 | |
| M8-12*0.5 | D6 | 13 | D6 | 60 | |
| M3.5*0.6 | D2.7 | 7 | D4 | 50 | |
| M4*0.7 | D3 | 8 | D4 | 50 | |
| M4.5*0.75 | D3.4 | 9 | D4 | 50 | |
| M6*0.75 | D4.8 | 12 | D6 | 60 | |
| M8*0.75 | D6 | 16 | D6 | 60 | |
| M10-12*0.75 | D8 | 20 | D8 | 60 | |
| M5*0.8 | D4 | 10 | D4 | 50 | |
| M6*1.0 | D4.8 | 12 | D6 | 60 | |
| M8*1.0 | D6 | 16 | D6 | 60 | |
| M10*1.0 | D8 | 20 | D8 | 60 | |
| M8*1.25 | D6 | 16 | D6 | 60 | |
| Four blades | M12*1.0 | D10 | 22 | D10 | 75 |
| M16*1.0 | D12 | 30 | D12 | 75 | |
| M20-48*1.0 | D16 | 30 | D16 | 90 | |
| M12-14*1.25 | D10 | 25 | D10 | 75 | |
| M12-20*1.5 | D10 | 28 | D10 | 75 | |
| M14-24*1.5 | D12 | 28 | D12 | 75 | |
| M20-48*1.5 | D16 | 30 | D16 | 90 | |
| M12*1.75 | D9.8 | 30 | 10 | 75 | |
| M14*2.0 | D10 | 30 | D10 | 75 | |
| M15-16*2.0 | D10 | 30 | D10 | 75 | |
| M16*2.0 | D12 | 30 | D12 | 75 | |
| M17-20*2.0 | D12 | 30 | D12 | 75 | |
| M20-80*2.0 | D16 | 40 | D16 | 100 | |
| M18-20*2.5 | D14 | 36 | D14 | 100 | |
| M20-80*2.5 | D16 | 40 | D16 | 100 | |
| M24*3.0 | D16 | 42 | D16 | 100 |
