Polished Tungsten Carbide Nozzle for Oil Gas Drill Bits with 100% Virgin Tungsten Carbide Material YG6/YG8/YG11/YG13 Grade and 103x103x2.3mm Size
Price:
$1.00 - $30.00 / Piece
MOQ:
10 Piece/Pieces
Delivery Time:
Negotiable
Brand:
Kedel
Product Description
Oil Gas Drill Bits Tungsten Carbide Jet Drill Bit Nozzles Polished
Factory Supply Oil Gas Drill Bits Tungsten Carbide Jet Bit Nozzle
Product Overview
| Product Name | carbide drill bit nozzle |
|---|---|
| Brand | KEDEL |
| Model | Customized |
| Type | Crossing slot/Inner hexagonal/Outter hexagonal/Cinquefoil/Triangular slot/Inner crossing |
| Material | 100% Virgin Tungsten Carbide |
| Grade | YG6/YG8/YG11/YG13 |
| Usage | Drill bit |
| MOQ | 10 Pieces |
Product Images

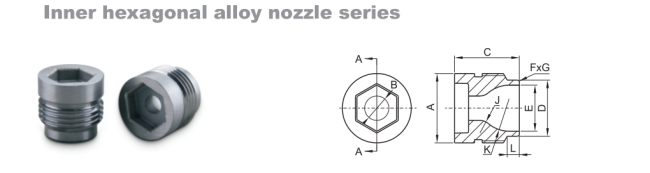

| Model | Pore Diamter (B) | ||
|---|---|---|---|
| MJP-LJA-2712 | 09# | 7.14 | |
| Outer Diameter (A) | 27.00 | 10# | 7.95 |
| Total Length (C) | 25.40 | 11# | 8.74 |
| Thread (M) | 1 1/16"-12UNF-2A | 12# | 9.53 |
| Small Outer Diameter (D) | 21.92 | 13# | 10.31 |
| Length (L) | 4.75 | 14# | 11.13 |
| Inner Bore (E) | 18 | 15# | 11.91 |
| Chamfer Angle (F×G) | 0.67×30° | 16# | 12.7 |
| Transition Arc (J) | 12.7 | 17# | 13.5 |
| Transition Arc (K) | 5 | 18# | 14.29 |
| - | - | 19# | 15.08 |
| - | - | 20# | 15.8 |
| - | - | 22# | 17.48 |
Related Products
Production Equipment
Quality Equipment
Exhibition
Frequently Asked Questions
Where is the Cemented Carbide Nozzle made?
Manufactured in Sichuan, China.
What is the brand name and model number?
Brand: KEDEL, Model: WLJ-2722.
What is the production capacity?
1,000,000 pieces per week.
What are the order terms?
Minimum order: 10-49 pieces at $18.00 per piece. ISO9001:2015 certified. Payment methods: T/T, L/C, Western Union, MoneyGram.
