YG15 Tungsten Carbide Nozzle 103x103x2.3mm for Diesel Injectors
Price:
$1.00 - $20.00 / Piece
MOQ:
10 Piece/Pieces
Delivery Time:
Negotiable
Brand:
KEDEL
Product Description
PDC Cemented Carbide Nozzle 103x103x2.3mm Diesel Injector Nozzle YG15
Product Overview
Factory Supply PDC Tungsten Carbide Diesel Injector Nozzle designed for high-performance drilling applications.
Product Specifications
| Product Name | Carbide drill bit nozzle |
|---|---|
| Brand | KEDEL |
| Model | Customized |
| Type | Crossing slot/Inner hexagonal/Outer hexagonal/Cinquefoil/Triangular slot/Inner crossing |
| Material | 100% Virgin Tungsten Carbide |
| Grade | YG6/YG8/YG11/YG13 |
| Usage | Drill bit |
| MOQ | 10 Pieces |
Product Images

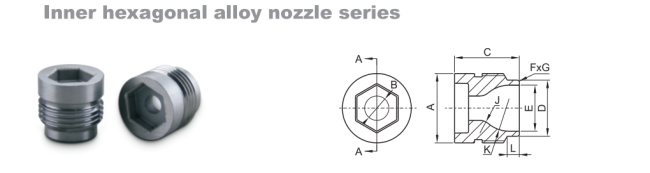

Technical Specifications
| Model | Pore Diameter (B) |
|---|---|
| MJP-LJA-2712 | 09# | 7.14 |
| Outer Diameter (A) | 27.00 | 10# | 7.95 |
| Total Length (C) | 25.40 | 11# | 8.74 |
| Thread (M) | 1 1/16"-12UNF-2A | 12# | 9.53 |
| Small Outer Diameter (D) | 21.92 | 13# | 10.31 |
| Length (L) | 4.75 | 14# | 11.13 |
| Inner Bore (E) | 18 | 15# | 11.91 |
| Chamfer Angle (F*G) | 0.67*30° | 16# | 12.7 |
| Transition Arc (J) | 12.7 | 17# | 13.5 |
| Transition Arc (K) | 5 | 18# | 14.29 |
| - | - | 19# | 15.08 |
| - | - | 20# | 15.8 |
| - | - | 22# | 17.48 |
Related Products
Tungsten Carbide Button
Tungsten Carbide Seal Ring
Tungsten Carbide Sleeves
Production Equipment
Quality Control Equipment
Product Exhibition
Frequently Asked Questions
1. Are you trading company or manufacturer?
A: We are manufacturer.
2. Do you make customized products?
A: Yes, we often make customized products.
3. Do you provide free samples?
A: We can provide free samples, but do not pay freight cost.
4. How long is your delivery time?
A: Generally 1-5 days if we have stock, 30 days if the product is customized.
