PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4
PDC Drill Bit Carbide Tungsten Thread nozzle is mainly used in chemical industry, food processing, machinery, metallurgy, and construction for applications including pulverizing, derusting, cleaning, and atomization. Our premium tungsten carbide nozzles are manufactured from high-quality raw materials and feature:
- High temperature resistance
- Excellent corrosion resistance
- Superior wear resistance
- Precision engineering
- Milling
- Proportioning as required
- Wet grinding
- Dry
- Granulation
- Press
- Sinter
- Accurate Grinding
- Inspection
- Cleaning
- Package
Below are two standard models. We also accept custom specifications with your drawings.
| Model | MJP-WLJ-2225 | Model | MJP-WLJ-2012 |
|---|---|---|---|
| Outer Diameter | 22.22 | Outer Diameter | 20.44 |
| Total Length | 25.40 | Total Length | 30.61 |
| Thread | 7/8'-14UNF-2A | Thread | 3/4-12UFN-A-2A |
| Small Outer Diameter | 17.1 | Small Outer Diameter | 16.1 |
| Length | 5.7 | Length | 11.56 |
| Endoporus | 12.8 | Endoporus | 12.6 |
| Transition Arc(J) | 12.7 | Transition Arc(J) | 12.7 |
| Transition Arc(K) | 18.2 | Transition Arc(K) | 12.7 |

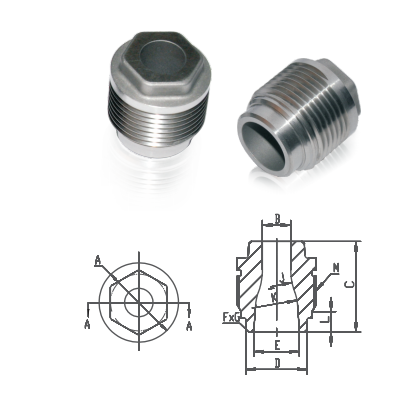

| Model | |
|---|---|
| MJP-WJA-2214 | |
| Outer Diameter (A) | 22.22 |
| Total Length (C) | 25.40 |
| Thread (M) | 7/8"-14UNF-2A |
| Small Outer Diameter (D) | 17.1 |
| Length (L) | 5.7 |
| Endoporus (E) | 12.8 |
| Chamfer Angle (F×G) | 0.8×45° |
| Transition Arc (J) | 12.7 |
| Transition Arc (K) | 18.2 |
| Pore Diameter (B) | |
| 09# | 7.14 |
| 10# | 7.95 |
| 11# | 8.74 |
| 12# | 9.53 |
| 13# | 10.31 |
| 14# | 11.13 |
| 15# | 11.91 |
| 16# | 12.7 |
Tungsten Carbide Button
Tungsten Carbide Seal Ring
Tungsten Carbide Sleeves
Packing Details: PDC Drill Bit Carbide tungsten thread nozzles are packed with plastic foam, solid plastic boxes, and cartons for optimal protection during shipping.
Our PDC Drill Bit Carbide tungsten thread nozzle products feature high hardness, corrosion resistance, wear resistance, and excellent toughness. We accept custom orders for non-standard specifications, with pricing based on raw materials, production costs, and order quantity.
