Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm
Price:
$1.00 - $46.60 / Piece
MOQ:
50 Piece/Pieces
Delivery Time:
Negotiable
Brand:
Kedel
Product Description
Carbide Drill Guide Bushing Polishing Oil Pump Collar Bushings
Factory-direct guide bushing polishing carbide collar bushings designed for rotating support, aligning anti-thrust, and sealing applications in motors, centrifuges, and submerged electric pumps under demanding conditions including high-speed rotation, sand abrasion, and gas corrosion.
Key Advantages
- Manufactured with 100% raw materials and strict incoming inspection
- Overpressure sintering process increases alloy densification, extending lifespan by 30%
- Customizable to meet specific customer requirements
Production Process
Milling → Proportioning → Wet grinding → Drying → Granulation → Pressing → Sintering → Inspection → Packaging
Specifications

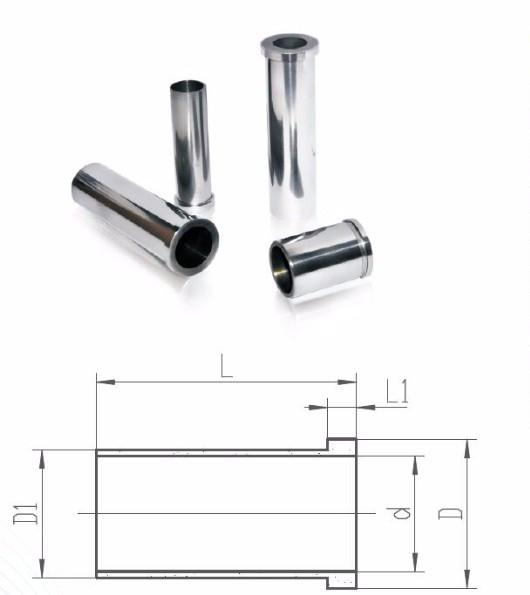

Standard tungsten carbide bushing specifications shown below. Custom specifications available upon request with drawings.
| Model | Specification | D | D1 | d | L | L1 |
|---|---|---|---|---|---|---|
| MJP-ZGA-101 | 0016 | 16.0 | 13.9 | 10.32 | 50.8 | 3.18 |
| MJP-ZGA-101 | 0014 | 16.0 | 13.9 | 10.32 | 76.2 | 3.18 |
| MJP-ZGA-101 | 0019 | 17.0 | 15.1 | 10.00 | 49.4 | 4.00 |
| MJP-ZGA-101 | 0018 | 22.0 | 18.88 | 14.29 | 25.4 | 3.18 |
| MJP-ZGA-101 | 0020 | 22.0 | 18.88 | 14.29 | 38.1 | 3.18 |
| MJP-ZGA-101 | 0021 | 22.0 | 18.88 | 14.29 | 50.81 | 3.18 |
| MJP-ZGA-101 | 0022 | 22.0 | 18.88 | 14.29 | 57.15 | 3.18 |
| MJP-ZGA-101 | 0023 | 22.0 | 18.88 | 14.29 | 69.85 | 3.18 |
| MJP-ZGA-101 | 0024 | 21.84 | 20.45 | 17.48 | 30.5 | 2.87 |
| MJP-ZGA-101 | 0025 | 23.4 | 21.0 | 15.00 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0026 | 23.4 | 21.0 | 14.8 | 53 | 4.00 |
| MJP-ZGA-101 | 0027 | 23.4 | 21.0 | 14.8 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0028 | 24 | 21.0 | 16.0 | 61.0 | 11 |
Product Gallery
Related Products
Production Equipment
Quality Control
Product Exhibition
Packing & Delivery
Each carbide collar bushing is carefully packed using plastic foam, solid plastic boxes, and protective cartons to ensure safe transportation.
Product Features
Our carbide collar bushings offer superior performance with high hardness, excellent corrosion resistance, exceptional wear resistance, and good toughness. We specialize in custom non-standard products with pricing based on raw materials, production costs, and order quantity.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time?
A: Standard delivery is 5-10 days for in-stock items. Custom orders require 15-20 days production time, depending on quantity.
Q: Do you provide samples? Are they free?
A: Yes, we provide free samples but customers must cover shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000: 100% payment in advance. For orders >$1000: 30% deposit with balance paid before shipment.
